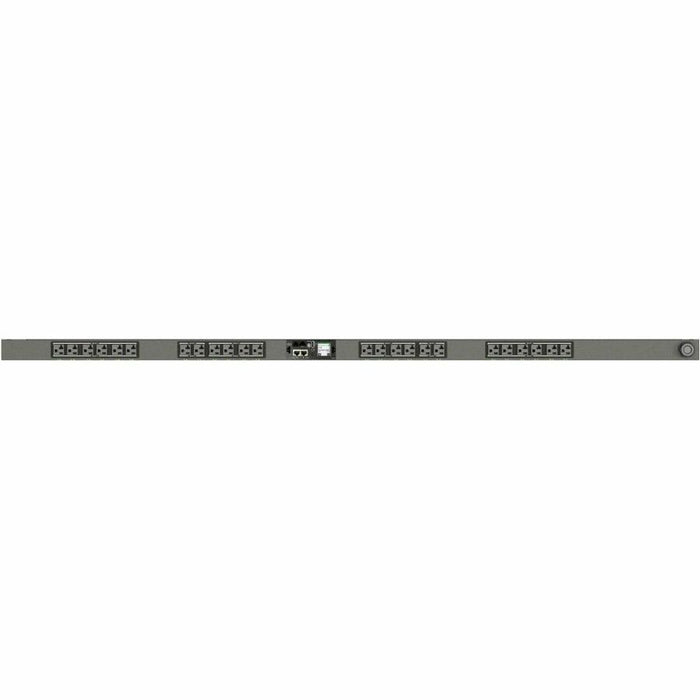

Vertiv VP7N20A4 Switched rPDU, 20A 120V, (24) NEMA 5-20R, 10ft Cord, Vertical
by Vertiv
The Vertiv VP7N20A4 PowerIT™ rPDU delivers intelligent switched outlet-level control and monitoring to your IT infrastructure. Ideal for enterprise and edge environments, it provides real-time input and outlet-level power metrics with optional environmental monitoring. Designed with hot-swappable IMD technology, dual Ethernet ports for daisy-chaining up to 40 units, and a high-visibility local display, this 20A, 120V vertical rPDU ensures reliable power distribution with maximum visibility and control.
| Specification | Details |
|---|---|
| Model Number | VP7N20A4 |
| Type | Switched rPDU with Outlet-Level Monitoring |
| Input Voltage / Current | 100-120V / 20A |
| Load Capacity | 1.9kW |
| Frequency | 50/60Hz |
| Receptacles | (24) NEMA 5-20R |
| Plug Type | NEMA L5-20P, 10ft (3m) Cord |
| Monitoring | Input & Outlet-Level (kWh, W, VA, PF, V, A) |
| Switching | Individual Outlet Switching |
| Environmental Monitoring | Optional via RJ Sensor Port (up to 16 sensors) |
| Network Protocols | SNMP, HTTP/HTTPS, SSH, Modbus TCP, etc. |
| Connectivity | Dual 10/100/1000 Mbps Ethernet, USB, RS232 |
| Mounting Style | Vertical, 0U |
| Dimensions (LxWxD) | 66.25 x 2 x 2.6 in / 1683 x 51 x 66 mm |
| Weight | 18 lbs (8.16 kg) |
| Chassis Color | Black Powder Coat |
| Certifications | UL 62368-1, RoHS, FCC Part 15 Class A |
| Warranty | 5 years (with registration), otherwise 3 years |
| Operating Temperature | Max 60°C (140°F) |
| Made In | USA – TAA & BAA COTS Compliant |
