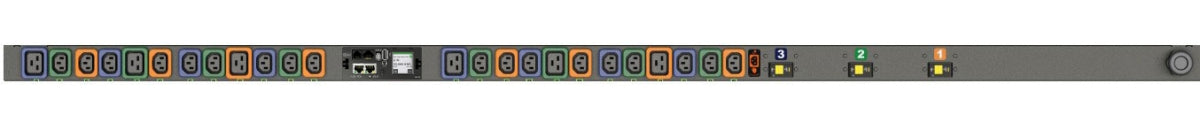

Vertiv VP7N30A8 Switched rPDU, 30A 208V Delta, 24 Outlets, Vertical
by Vertiv
The Vertiv VP7N30A8 is a high-performance Switched rPDU designed for critical IT environments. Delivering 30A of power across a 208V Delta configuration, it supports 24 individually switchable outlets (18 C13 and 6 C19) for enhanced control and remote power management. Integrated with outlet-level monitoring, fault-tolerant daisy chaining, and environmental sensing capabilities, this vertical 0U PDU provides real-time insights and control to maximize uptime and energy efficiency. Ideal for data centers demanding flexibility, visibility, and reliability.
| Specification | Details |
|---|---|
| Part Number | VP7N30A8 |
| Form Factor | Vertical (0U) |
| Input Voltage | 208V Delta |
| Input Current | 30A (3-Phase) |
| Power Capacity | 8.6kW |
| Plug Type | NEMA L15-30P |
| Outlet Count | 24 Total |
| Outlet Types | 18 × Locking IEC C13, 6 × Locking IEC C19 |
| Switching | Individual Outlet-Level Switching |
| Monitoring | Input, Outlet, Breaker; Environmental (optional sensors) |
| Display | Local LCD, Auto-Oriented |
| Mounting | Toolless Vertical Mounting (66.25in) |
| Connectivity | Dual Ethernet, RS232, USB |
| Protocols Supported | SNMP, HTTP/HTTPS, SSH, Modbus TCP, Syslog, and more |
| Build | Black Powder-Coated Heavy Steel |
| Certifications | UL 62368-1, RoHS, FCC Part 15 Class A |
| Warranty | 5-Year Limited (with registration), otherwise 3 Years |
| Country of Origin | USA, TAA and BAA COTS Compliant |
