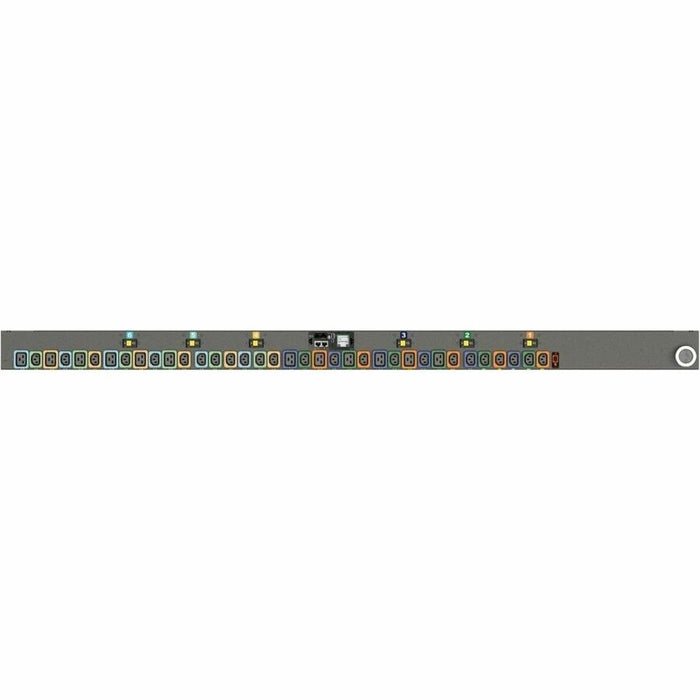

Vertiv Geist VP7N60A3 Switched rPDU, 60A 208V, 36 Outlets, Vertical
by Vertiv
The Vertiv Geist VP7N60A3 is a high-performance Switched rPDU that delivers reliable, outlet-level power distribution with remote control capabilities. Ideal for critical IT environments, it supports 60A, 208V Delta input with 17.2kW capacity, featuring (24) Locking IEC C13 and (12) Locking IEC C19 outlets. This vertical Zero U unit includes environmental monitoring, individual outlet switching, and robust network connectivity, ensuring uptime and operational visibility for modern data centers.
| Specification | Details |
|---|---|
| Model Number | VP7N60A3 |
| Form Factor | Vertical (Zero U) |
| Mounting | Toolless, Vertical (66.25in / 1683mm) |
| Input Power | 60A, 208V Delta, 3-Phase |
| Power Capacity | 17.2kW |
| Receptacles | 24 × Locking IEC C13, 12 × Locking IEC C19 |
| Plug Type | IEC60309 3P+E (IP67 Rated) |
| Cord Length | 10 ft / 3 m |
| Monitoring | Input/Outlet Level, Circuit Breaker Monitoring |
| Remote Switching | Individual Outlet Control with Sequential Power-up |
| Display | Local LCD Touchscreen |
| Network Connectivity | Dual Ethernet 10/100/1000Mbps, RS232 via RJ45 |
| Protocols Supported | SNMP, HTTP/S, SSH, RADIUS, Modbus TCP, etc. |
| Environmental Monitoring | Optional sensors (up to 16), RJ-type port |
| Chassis Color / Finish | Black Powder-Coated Steel |
| Weight | 24 lbs / 10.89 kg |
| Certifications | UL & c-UL 62368-1, RoHS, FCC Part 15 Class A |
| Warranty | 5-Year (if registered within 120 days), otherwise 3-Year |
| Country of Origin | USA (TAA & BAA COTS Compliant) |
