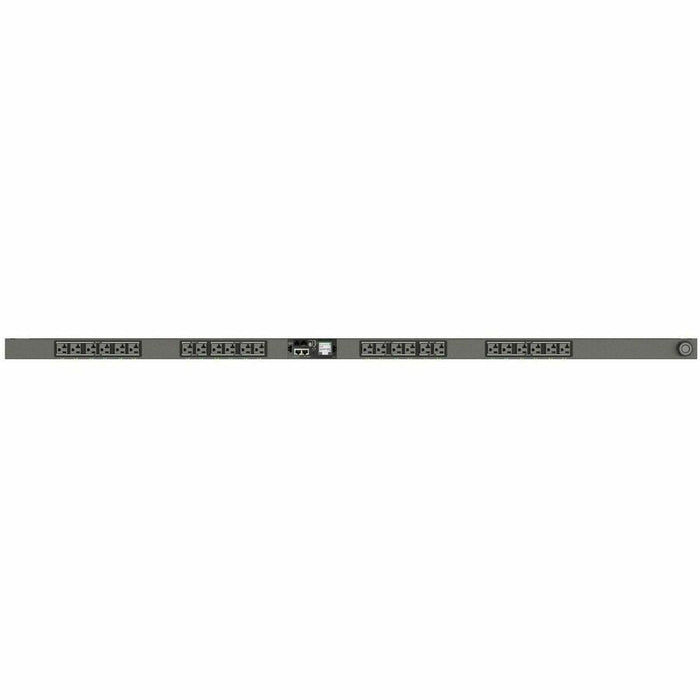

Vertiv VP5N20A4 Switched rPDU, 20A 120V, 24 Outlets, Vertical Mount
by Vertiv
The Vertiv VP5N20A4 is a high-performance Switched rPDU (rack Power Distribution Unit) designed for modern IT environments. It provides reliable 120V power to critical equipment through 24 NEMA 5-20R outlets. With unit-level switching, input power monitoring, and remote management capabilities via Ethernet, this vertical 66" Zero U unit ensures optimal uptime and flexibility. Ideal for data centers requiring outlet-level control, environmental monitoring support, and network redundancy via daisy-chaining up to 50 devices on a single IP address.
| Feature | Specification |
|---|---|
| Part Number | VP5N20A4 |
| PDU Type | Switched rPDU with Unit Level Monitoring |
| Power Capacity | 20A, 120V, 1.9kW |
| Input Plug | NEMA L5-20P (Twistlock) |
| Outlets | 24 x NEMA 5-20R |
| Mounting Style | Vertical (Zero U, 66in / 1683mm) |
| Power Cord Length | 10 ft / 3m |
| Monitoring | Input power monitoring, environmental sensor support |
| Outlet Control | Remote switching, outlet-level control |
| Display | High visibility local display, auto-orienting LCD |
| Daisy-Chaining | Up to 50 devices, Fault-tolerant with RSTP |
| Network Connectivity | Dual Gigabit Ethernet (10/100/1000 Mbps) |
| Protocols Supported | SNMP (v1/v2c/v3), HTTP(S), SSH, Modbus TCP, Syslog, more |
| USB / Serial / IP Reset | Yes / RS232 via RJ45 / Yes |
| Environmental Sensors | 1 RJ port, supports up to 16 sensors |
| Dimensions (LxWxD) | 66.25in x 2in x 2.6in (1683mm x 51mm x 66mm) |
| Weight | 18 lbs (8.16 kg) |
| Chassis Color | Black powder-coated steel |
| Compliance | UL 62368-1, RoHS, FCC Part 15 Class A |
| Country of Origin | USA (TAA & Buy American Act compliant) |
| Warranty | 5 years (with registration within 120 days), otherwise 3 yrs |
