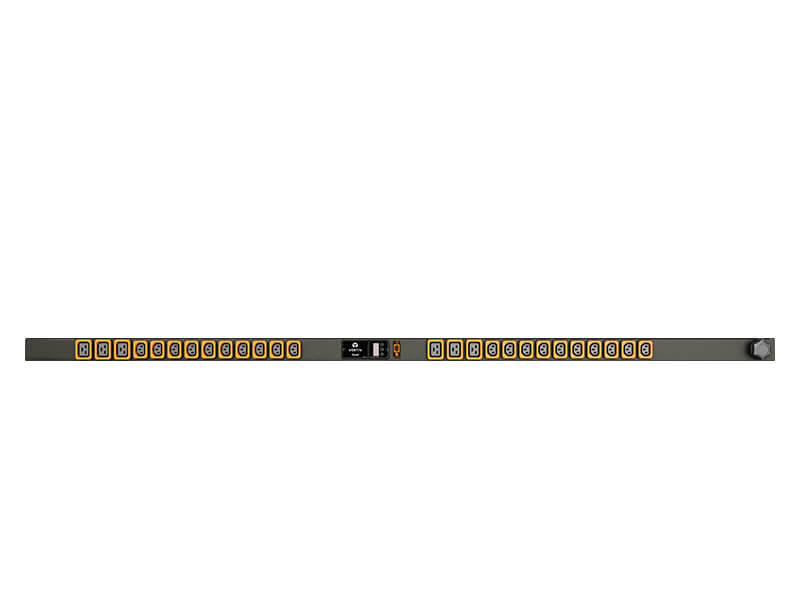

Vertiv VP5N20AA Switched rPDU, 20A, 240/415V WYE, 24 C13/C19 Outlets
by Vertiv
The Vertiv VP5N20AA is a high-performance switched rack PDU (rPDU) designed for data centers and critical IT environments. With 24 combination C13/C19 outlets, unit-level monitoring, and remote switching capabilities, it ensures reliable power distribution, proactive environmental monitoring, and efficient management via remote network access. Built with fault-tolerant daisy-chaining, this vertical 0U unit supports up to 50 devices per IP and helps reduce downtime with intelligent controls.
| Category | Details |
|---|---|
| Model | VP5N20AA |
| Mounting Style | Vertical (0U) |
| Input Voltage | 200-240/346-415V WYE |
| Current Rating | 20A, 3-Phase WYE |
| Power Capacity | 11.5kW |
| Input Plug Type | IEC60309 3P+N+E, IP44 (Splashproof) |
| Outlets | 24 × Combination C13/C19 (8 per phase) |
| Monitoring | Unit-level input, circuit breaker current, outlet switching, local display |
| Network Connectivity | Dual Ethernet (10/100/1000Mbps) |
| Protocols Supported | SNMP, HTTP/HTTPS, SSH, Modbus TCP, Syslog, and more |
| Remote Management | Individual outlet switching with delays, reboot, sequencing |
| Environmental Sensors | Supports up to 16 via RJ jack |
| Operating Temperature | Up to 60°C (140°F) |
| Cord Length | 10 ft / 3 m |
| Dimensions (L×W×D) | 66.25in × 2in × 2.6in (1683mm × 51mm × 66mm) |
| Weight | 18 lbs (8.16 kg) |
| Color | Black Powder Coat |
| Certifications | UL 62368-1, RoHS, FCC Class A |
| Warranty | 5 years with registration (otherwise 3 years) |
| Country of Origin | USA (TAA and Buy American Act compliant) |
