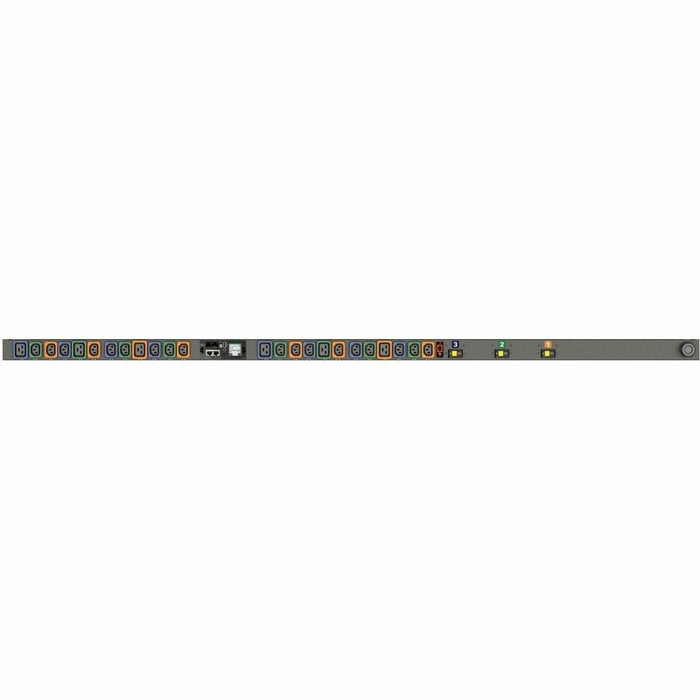

Vertiv VP5N30A0 Switched rPDU, 30A 120/208V WYE, Vertical, 8.6kW, 24 Outlets
by Vertiv
The Vertiv VP5N30A0 is a high-performance switched rack PDU designed to deliver reliable, monitored power distribution for modern IT infrastructures. With 30A capacity at 120/208V in a WYE configuration, this unit supports real-time power and environmental monitoring with outlet-level switching, enabling remote power control and optimized energy usage. Featuring 24 U-lock IEC outlets (18 C13 and 6 C19), advanced network protocols, and a compact vertical form factor, the VP5N30A0 offers the ideal solution for high-density data centers requiring intelligent, fault-tolerant power delivery.
| Feature | Details |
|---|---|
| Model | VP5N30A0 |
| PDU Type | Switched, Unit Level Monitoring |
| Input Voltage | 120/208V WYE |
| Maximum Current | 30A, 3-Phase |
| Load Capacity | 8.6kW |
| Input Plug Type | NEMA L21-30P |
| Output Receptacles | (18) Locking IEC C13, (6) Locking IEC C19 |
| Mounting | Vertical, Zero U |
| Cord Length | 10 ft / 3 m |
| Monitoring Capabilities | Total Unit (kWh, W, VA, PF), Phase Monitoring, Breaker-Level Monitoring |
| Remote Management | Outlet switching, sequential power-up, user-defined time delays |
| Network Connectivity | Dual 10/100/1000 Mbps Ethernet |
| Protocols Supported | SNMP, HTTP/S, SSH, RADIUS, Modbus TCP, and more |
| Environmental Monitoring | Optional sensor support (up to 16 sensors via RJ connection jack) |
| Display | LCD touchscreen with auto orientation |
| Chassis Dimensions (HxWxD) | 66.25 x 2 x 2.6 in (1683 x 51 x 66 mm) |
| Finish | Black powder-coated heavy steel |
| Certifications | UL/c-UL 62368-1, RoHS, FCC Part 15 Class A |
| Warranty | 5-year limited (with registration) |
| Country of Origin | USA – TAA and BAA COTS compliant |
