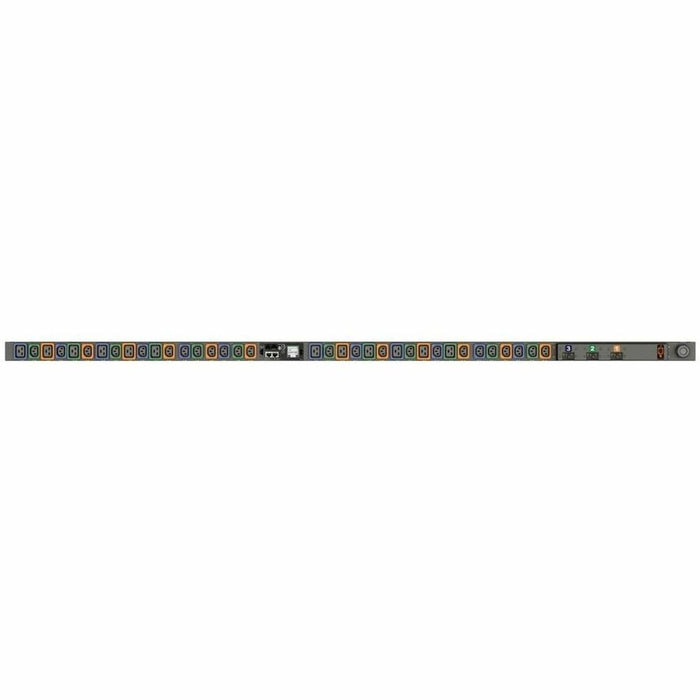

Vertiv VP5N30A9 Switched rPDU, 30A 208V, (24) C13 & (12) C19, L15-30P
by Vertiv
The Vertiv VP5N30A9 is a high-performance Switched Rack Power Distribution Unit (rPDU) with unit-level monitoring and outlet-level switching. It delivers reliable 30A, 208V DELTA power (8.6kW) through 36 locking IEC outlets—ideal for high-density IT environments. Equipped with a 10-ft L15-30P power cord, it includes advanced features like input and breaker-level power monitoring, remote outlet control, environmental sensor support, and daisy-chain networking with RSTP failover. The vertical, Zero U design maximizes rack space while enabling intelligent power management and uptime assurance.
| Category | Details |
|---|---|
| Model Number | VP5N30A9 |
| Form Factor | Vertical, Zero U |
| Power Capacity | 30A, 208V DELTA, 8.6kW |
| Monitoring | Unit-level input, breaker monitoring |
| Outlet Switching | Yes, with remote control and sequencing |
| Receptacles | (24) Locking IEC C13, (12) Locking IEC C19 |
| Plug Type | NEMA L15-30P (Twistlock) |
| Cord Length | 10ft / 3m |
| Display | LCD touchscreen, auto-oriented |
| Networking | Dual GbE ports, daisy chain (50 devices) |
| Protocols | SNMP v1/v2c/v3, HTTP/S, SSH, Modbus TCP, etc. |
| Remote Sensors | Supports up to 16 via RJ connection |
| Mounting Hardware | Included (61.25in / 64.75in spacing) |
| Construction | Black powder-coated heavy steel |
| Certifications | UL 62368-1, RoHS, FCC Part 15 Class A |
| Warranty | 5-Year (with registration), 3-Year standard |
| Dimensions (HxWxD) | 72 x 2 x 2.6 in (1829 x 51 x 66 mm) |
| Weight | 22 lbs (9.98 kg) |
