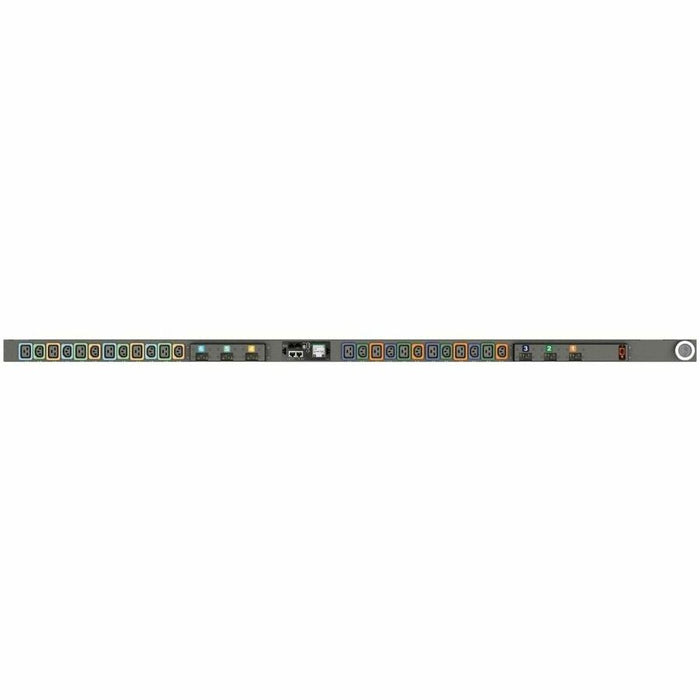

Vertiv Geist VP5N60A1 Switched rPDU, 60A 208V Delta, 24 Outlets, Vertical
by Vertiv
The Vertiv Geist VP5N60A1 is a Switched EC rack PDU offering unit-level monitoring and individual outlet switching for advanced power management in high-density IT environments. Featuring 24 U-Lock IEC outlets (12 C13, 12 C19), this 60A, 208V Delta vertical rPDU delivers 17.2kW of reliable power distribution. It includes input, phase, and circuit-level monitoring, environmental sensor support, dual Ethernet, and toolless mounting. Ideal for data centers requiring remote power control and fault-tolerant daisy chaining of up to 50 devices.
| Specification | Details |
|---|---|
| Part Number | VP5N60A1 |
| Power Rating | 60A, 208V Delta, 17.2kW |
| Outlet Configuration | 12x Locking IEC C13, 12x Locking IEC C19 |
| Plug Type | IEC60309 3P+E, IP67 Rated |
| Cord Length | 10 ft / 3 m |
| Form Factor | Vertical, 70 in / 1778 mm |
| Monitoring | Unit-level input/phase/circuit monitoring, environmental sensor capable |
| Switching | Individual outlet control with sequencing and time delays |
| Mounting | Vertical Zero U with toolless brackets (61.25" & 64.75" spacing) |
| Enclosure | Black powder-coated steel |
| Networking | Dual Ethernet, DHCP, SNMP, RADIUS, Syslog, Modbus TCP, JSON API |
| Certifications | UL & c-UL 62368-1, RoHS, FCC Part 15 Class A |
| Operating Temp | Up to 60°C (140°F) |
| Warranty | 5-year limited (with registration), 3-year standard |
| Country of Origin | USA, TAA & Buy American Act Compliant |
