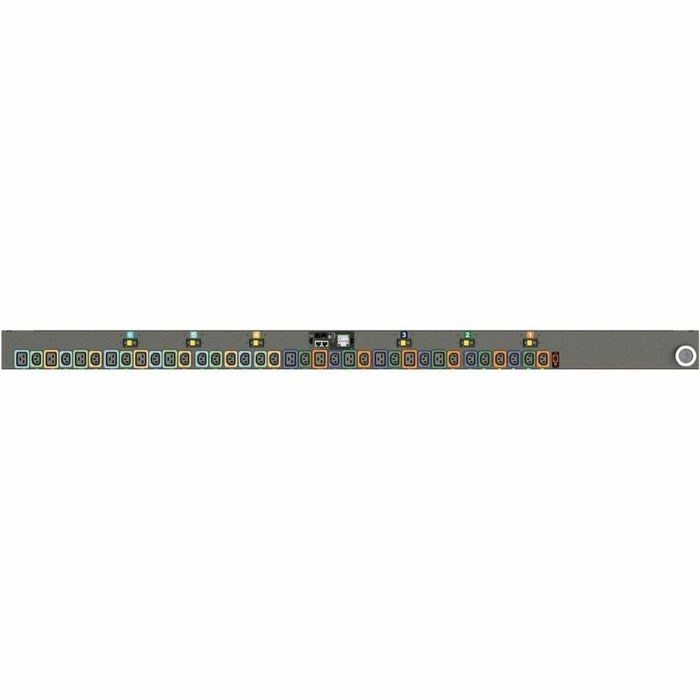

Vertiv Geist VP5N60A3 Switched rPDU, 60A, 208V, 36 Outlets, Vertical
by Vertiv
The Vertiv Geist VP5N60A3 is a high-performance Switched rPDU delivering 17.2kW of reliable power at 60A, 208V Delta. Designed for critical IT infrastructure, it features 36 locking IEC outlets (24 C13, 12 C19), environmental monitoring, and unit-level switching capabilities. With advanced input and breaker-level monitoring, this vertical Zero U unit is perfect for remote power control, energy usage analysis, and uptime maximization in modern data centers.
| Specification | Details |
|---|---|
| Model Number | VP5N60A3 |
| Form Factor | Vertical, Zero U |
| Input Voltage | 208V (Delta, 3-phase) |
| Current Rating | 60A |
| Power Capacity | 17.2kW |
| Frequency | 50/60Hz |
| Plug Type | IEC60309 3P+E, 60A, IP67 Rated |
| Receptacles | 24 x Locking IEC C13, 12 x Locking IEC C19 |
| Outlet Control | Individual Outlet Switching |
| Monitoring | Unit level input & circuit/breaker monitoring |
| Display | High-visibility LCD touchscreen |
| Environmental Sensors | Optional (up to 16 sensors supported) |
| Connectivity | Dual Ethernet, RS232, USB, RJ for sensors |
| Network Protocols | SNMP, HTTP/HTTPS, SSH, DHCP, RADIUS, Modbus TCP |
| Daisy Chaining | Up to 50 devices on 1 IP address |
| Mounting Compatibility | Toolless brackets (61.25" and 64.75" spacing) |
| Chassis Dimensions (LxWxD) | 66.25" x 3.7" x 2.6" (1683mm x 94mm x 66mm) |
| Power Cable Length | 10 ft (3m), 6/4 AWG |
| Color | Black Powder Coat |
| Certifications | UL 62368-1, RoHS, FCC Part 15 Class A |
| Warranty | 5 years (if registered within 120 days) |
| Country of Origin | USA, TAA & BAA COTS Compliant |
