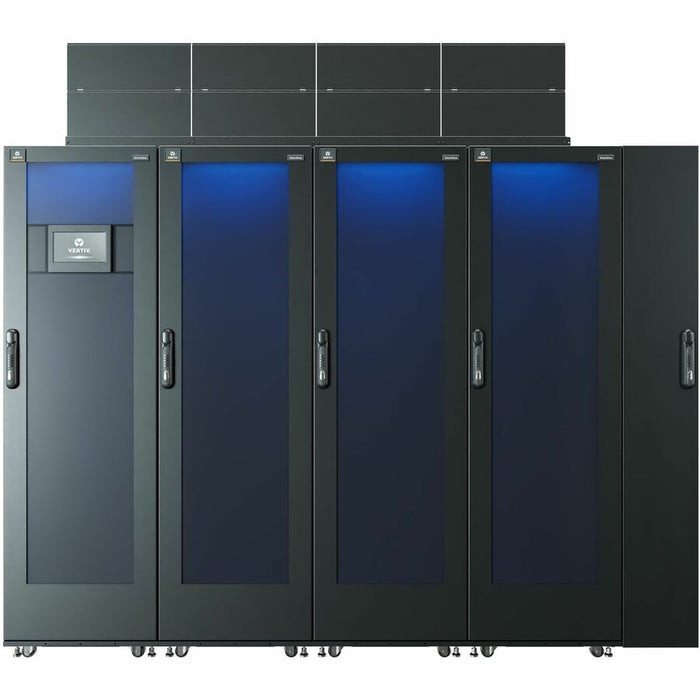

Vertiv™ SmartRow™ 2 | 3 Racks | 20kW 208V | 3-Phase (2N) | Cold Aisle Containment | 2 In-Row Cooling Units (N)
by Vertiv
The Vertiv™ SmartRow™ 2 SR2N03020PAA1 is a fully integrated, modular data center solution with three IT racks and 20kW capacity designed for high-efficiency edge deployments. Operating on a 208V 3-phase, 4-wire+PE configuration, it delivers internal 2N power redundancy with dual power paths and includes two in-row cooling units (non-redundant). Cold aisle containment ensures optimal airflow management while a built-in power distribution system protects against surges and simplifies installation. Ideal for rapid edge deployments where reliability, space efficiency, and manageability are key.
| Specification | Details |
|---|---|
| Model Number | SR2N03020PAA1 |
| Rack Count | 3 IT Racks |
| Max Power Capacity | 20 kW |
| Input Voltage | 208V, 3-Phase, 4-Wire + PE |
| Power Redundancy | 2N UPS & 2N rPDU |
| Cooling Redundancy | No cooling redundancy (2 CRVs) |
| Cooling Type | In-Row CRV with Cold Aisle Containment |
| Cooling Units | 2x Liebert CRV Units (Non-redundant) |
| Main Input Breaker Size | 175A |
| Condenser Breaker Size | 15A |
| Weight | 1,905 kg (4,201 lbs) |
| Dimensions (L x D x H) | 2700 x 1400 x 2271 mm (106.3" x 55.2" x 89.4") |
| Minimum Staging Area | 20.51 m² (220.8 ft²) |
