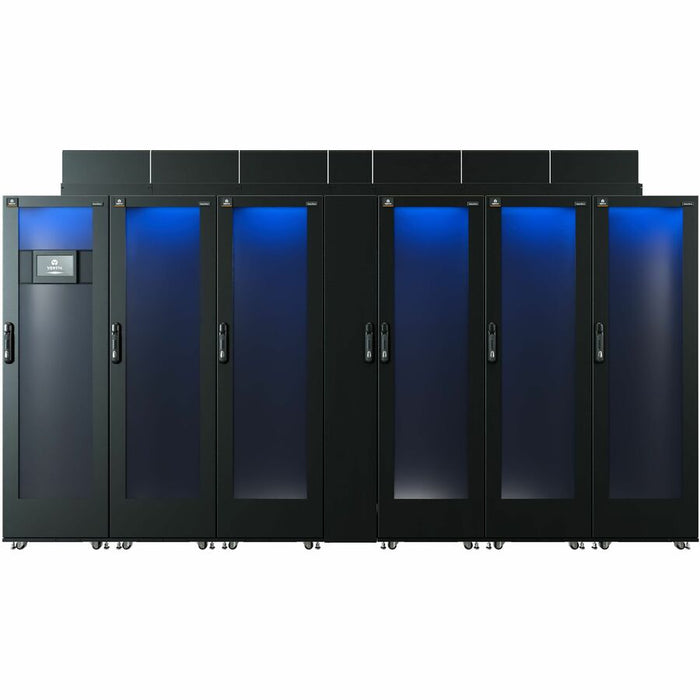

Vertiv™ SmartRow™ 2 | 5 Racks | 20 kW 208V | 3-Phase | No Redundancy (SR2N05020NAA1)
by Vertiv
The Vertiv™ SmartRow™ 2 (SR2N05020NAA1) is a fully integrated and pre-configured data center solution designed for rapid deployment and efficient edge computing. This model includes five IT racks with 20 kW total capacity, operating on a 208V 3-phase, 4-wire + PE system. It features in-row cooling and power distribution, engineered for environments where space, scalability, and performance matter. With built-in containment and structured cable management, the SmartRow 2 ensures consistent airflow, reduced hotspots, and easier service access — all in a self-contained, modular footprint.
| Specification | Details |
|---|---|
| Model Number | SR2N05020NAA1 |
| System Type | SmartRow™ 2 |
| IT Rack Quantity | 5 |
| Total Load Capacity | 20 kW |
| Power Configuration | 3-Phase, 208V, 4-wire + PE |
| Cooling Redundancy | None |
| Power Redundancy (UPS/rPDU) | None |
| Cooling Units Included | Integrated In-row CRV |
| Main Input Breaker Size | 175A |
| Condenser Breaker Size | 15A |
| Dry Weight | 118 kg (260.2 lbs) |
| Dimensions (L x H x D) | 3900 mm x 2271 mm x 1400 mm |
| Staging Area Requirement | 21.16 m² (227.8 ft²) |
