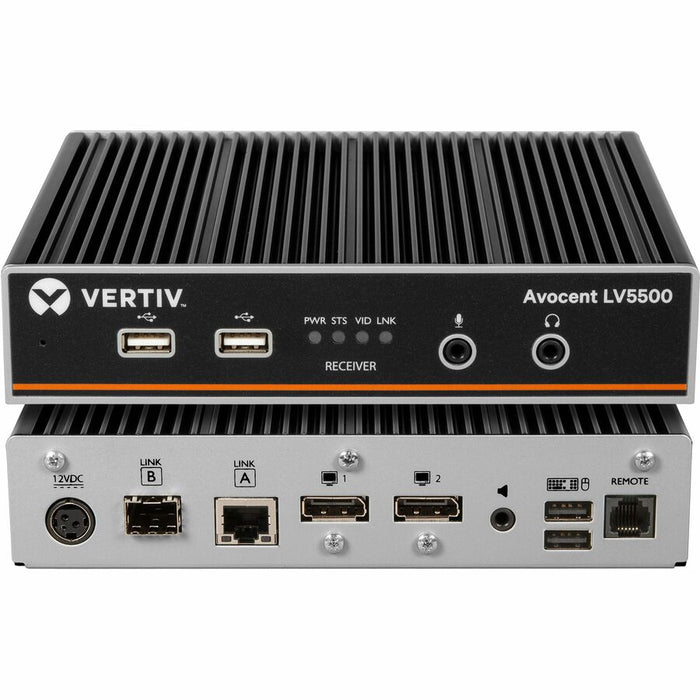

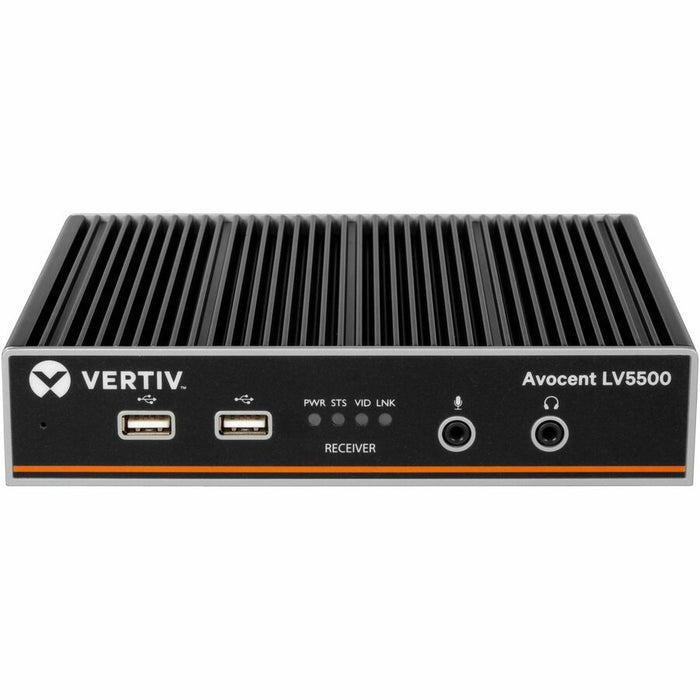

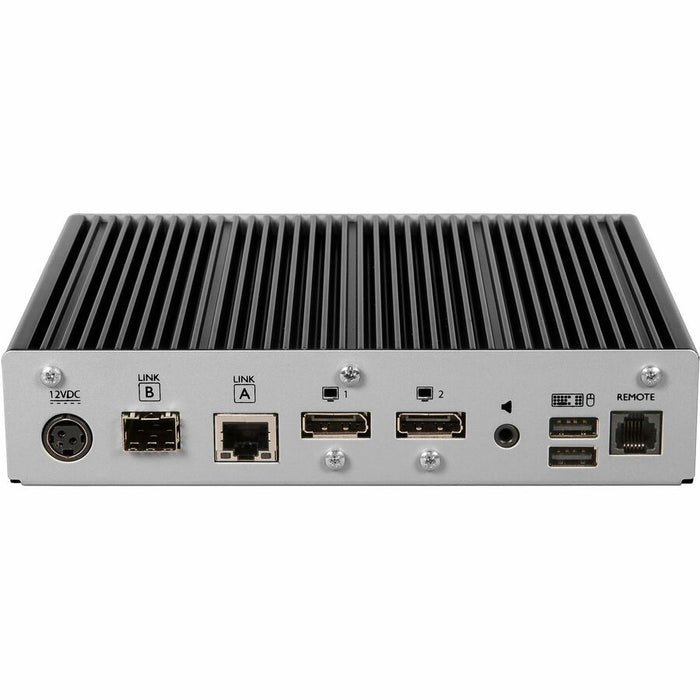

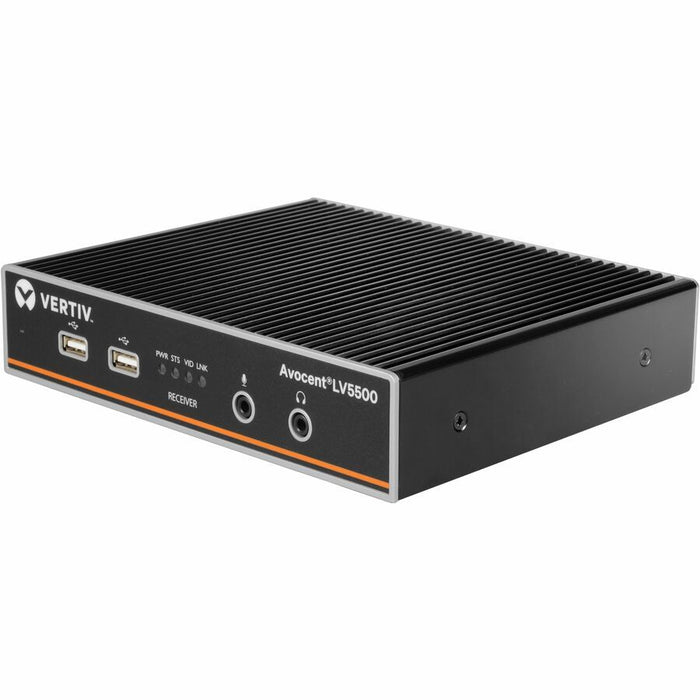

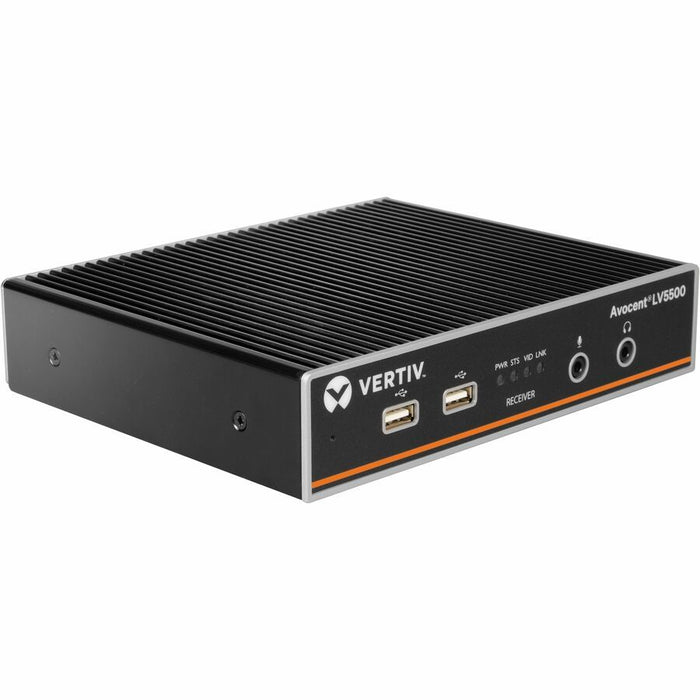

Vertiv Avocent LV5500R-400 High-Performance 4K KVM Extender Receiver
The Vertiv Avocent LongView LV5500R-400 is a high-performance KVM extender receiver that delivers stunning 4K video at 60Hz, real-time USB 2.0 and audio support, and secure connectivity over long distances. Designed for use with the LV5500T transmitter, this unit is ideal for demanding environments such as broadcast studios, control centers, and command rooms. It supports up to two users (one local and one remote) and ensures seamless operation with minimal setup. Housed in a compact 1U rack-mountable design, the LV5500R-400 enhances productivity, security, and video fidelity over fiber optic connections.
Package Contents
-
1 x LV5500R Receiver
-
DisplayPort, USB, and Audio Cables
-
Power Supply
-
Mounting Kit
-
Quick Installation Guides
-
Compliance and Warranty Documentation
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand | Vertiv Avocent |
| Product Line / Series | LongView 5000 |
| Model | LV5500R-400 |
| Product Type | KVM Extender Receiver |
| Connectivity Technology | Wired |
| Max Video Resolution | 4096 x 2160 @ 60Hz (4K UHD) |
| Graphic Mode | 4K |
| Display Interface | DisplayPort |
| USB Ports | 2 × USB 2.0 |
| Audio Support | Yes (Headphone & Microphone via 3.5mm jack) |
| Max Operating Distance | 13,123.36 ft (via Fiber) |
| Users Supported | 1 Local, 1 Remote |
| Form Factor | 1U Rack-Mountable |
| Power Input | 100-240V AC |
| Power Consumption | 18W |
| Dimensions (HxWxD) | 1.54" x 7.32" x 5.83" |
| Weight | 2.73 lbs |
| Compliance | TAA Compliant, China RoHS |
| Environment Support | PC, Unix, Mac, Sun, Linux |
| Warranty | 2-Year Limited Warranty |
