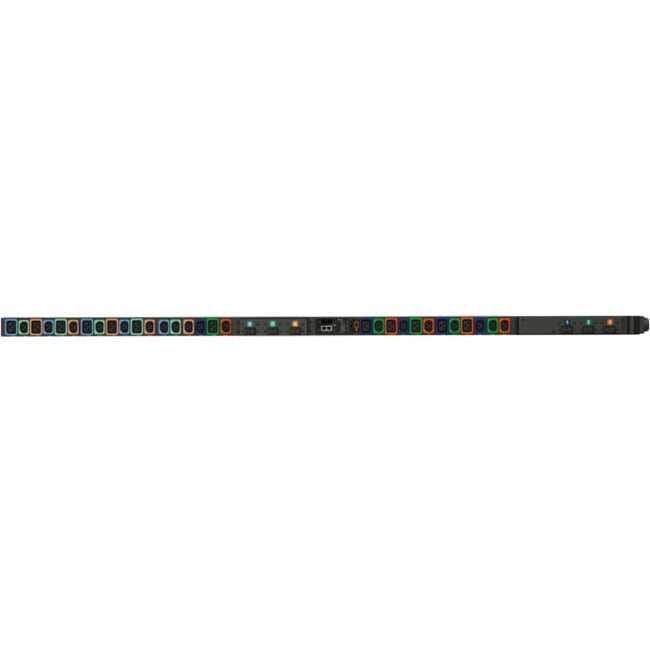

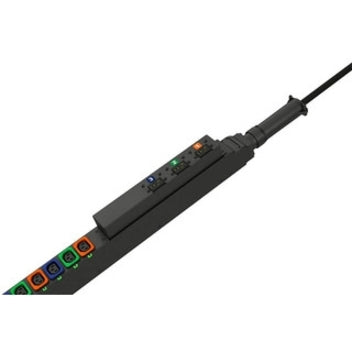

Vertiv Geist UU30010L UPDU 22kW 0U Switched rPDU – 30 Outlets (C13/C19) | Universal Input
The Vertiv Geist UU30010L is a powerful and flexible Universal Power Distribution Unit (UPDU) designed for high-density IT environments. Featuring 30 outlets (18 x C13, 12 x C19) with patented U-Lock technology, this 0U vertical switched rPDU supports universal input ranging from 16A to 60A and 230V to 415V, covering both single and three-phase power configurations. With a maximum power capacity of 22kW, it supports seamless deployment via compatible Facility Side Cables (sold separately).

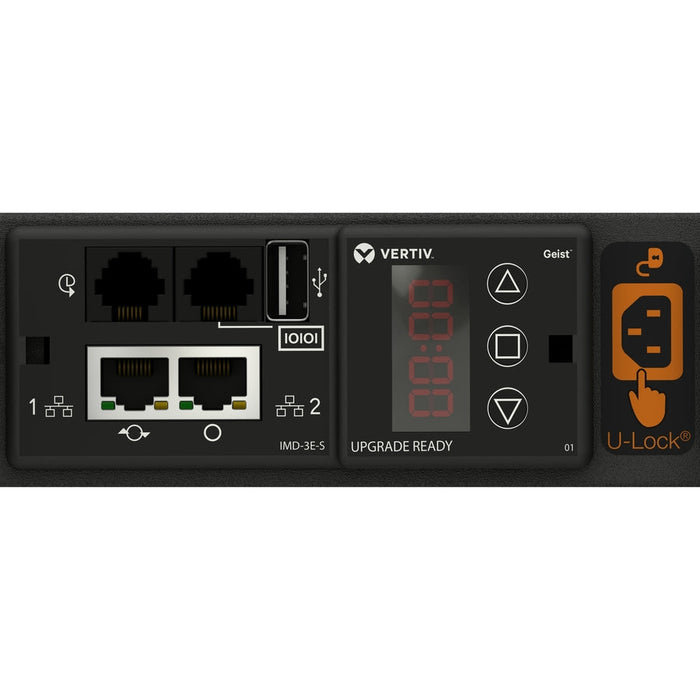

Ideal for dynamic data centers, this unit includes an Interchangeable Monitoring Device (IMD) for remote monitoring, environmental sensors, and secure outlet-level switching via protocols like SNMP, SSH, HTTPS, and more. Fully TAA and RoHS compliant, this PDU delivers unmatched performance and long-term adaptability.
| Category | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand Name | Vertiv Geist |
| Part Number | UU30010L |
| Product Series | rPDU |
| Model | DUU3EGW1-30PHB7-2S02A9K00-S-A |
| Form Factor | Vertical (0U) Rack-Mountable |
| Outlet Configuration | 30 Total: 18 x C13 U-Lock, 12 x C19 U-Lock |
| Input Configuration | Universal Input (16A–60A, 230V–415V) |
| Power Capacity | 22 kW |
| Phase | Three Phase |
| Monitoring | Switched, Environmental & Outlet-Level EC |
| Network Management | DHCP, SNMP v1/v2c/v3, HTTPS, SSH, Syslog, etc. |
| Plug Type | Universal Input (via Facility Side Cable) |
| Protection | Overcurrent Protection, Double Pole |
| Dimensions (H x W x D) | 72" x 2" x 2.6" |
| Weight | 25 lbs |
| Compliance | RoHS, China RoHS, TAA Compliant |
| Warranty | 5-Year Limited Warranty |
| Condition | New and Factory Fresh |
