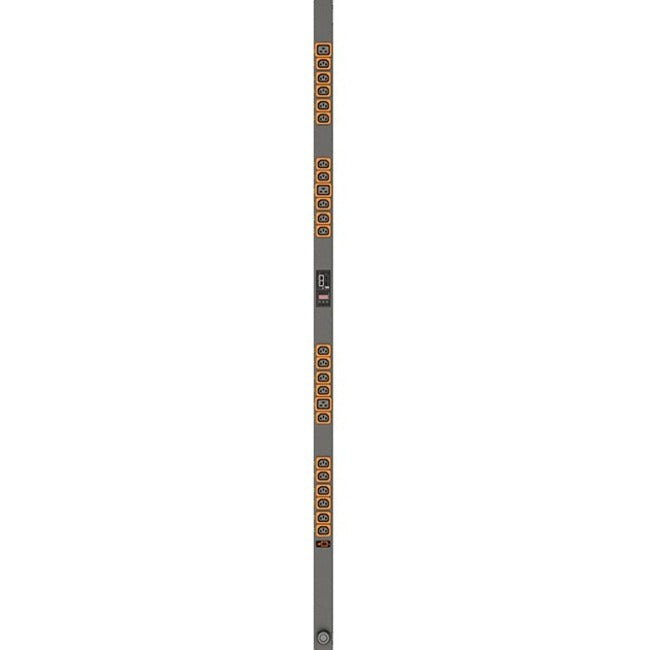

Vertiv Geist VP8959NA3 Switched Rack PDU - (21) U-Lock C13, (3) U-Lock C19, 20A, 208V, Vertical, 0U
The Vertiv Geist VP8959NA3 Switched Rack PDU offers secure, intelligent power distribution for high-performance IT environments. With 24 U-Lock outlets (21 x C13 and 3 x C19), this vertical 0U PDU allows remote monitoring and outlet-level switching for maximum control and uptime. The built-in IMD supports secure access with LDAP and can be upgraded for advanced functionality. Equipped with bistable latching relays for reduced power draw and fault-tolerant daisy chaining for up to 40 units, the VP8959NA3 ensures uninterrupted power management. Its patented U-Lock outlets prevent accidental disconnections, while Visible Light Communication enables easy mobile configuration. UL-listed and backed by a 5-year Vertiv warranty upon registration, it is ideal for data center deployments requiring reliability, scalability, and intelligent power control.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand | Vertiv Geist |
| Series | rPDUs |
| Model | VP8959NA3 |
| PDU Type | Switched |
| Mount Type | Rack-mountable |
| Mount Orientation | Vertical (0U) |
| Plug Type | NEMA L6-20P |
| Input Voltage | 230V AC |
| Input Current | 20A |
| Power Rating | 3300W |
| Receptacle Type | 21 x U-Lock IEC 60320 C133 x U-Lock IEC 60320 C19 |
| Network Interface | RJ-45 (Ethernet) |
| Height | 66.3 in |
| Width | 2 in |
| Depth | 2.6 in |
| Weight | 18 lbs |
| Product Condition | New and Factory Fresh |
| Warranty | 5 Years (with registration) |
| Country of Origin | United States |
