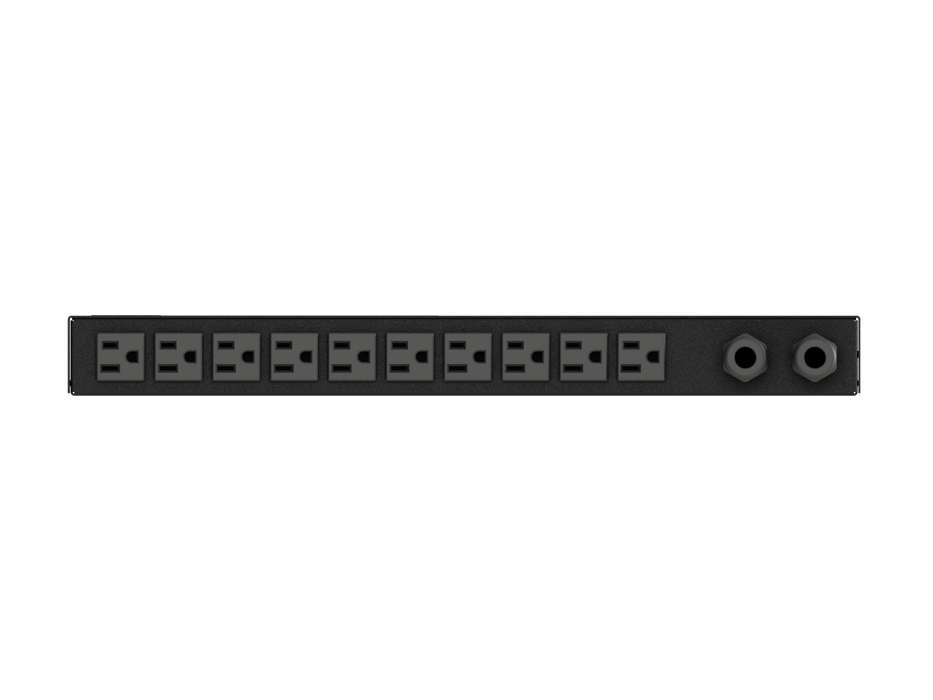

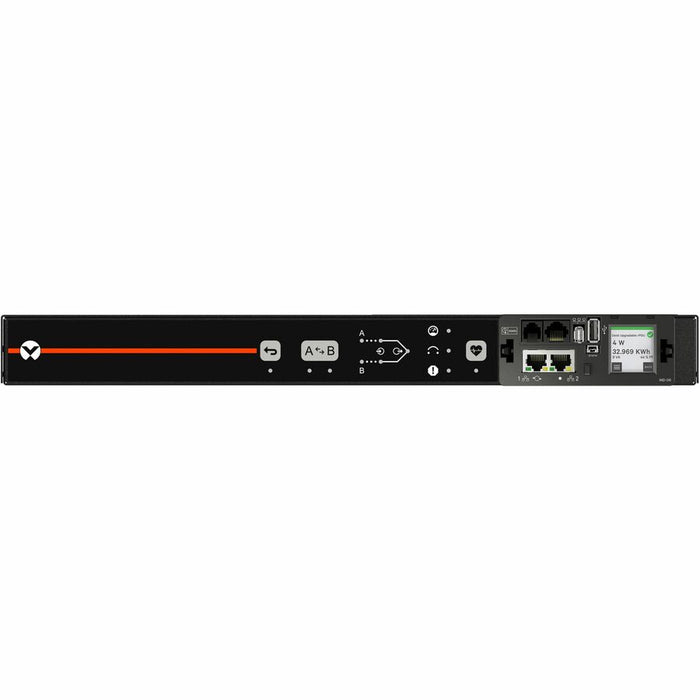

Vertiv PowerIT VA4N11A0 Rack Transfer Switch, 15A, 120V, Monitored
by Vertiv
Ensure seamless power continuity for single-corded devices with the Vertiv PowerIT VA4N11A0 Rack Transfer Switch. Designed for intelligent redundancy, this 15A, 120V horizontal rPDU features dual input power sources and an automatic transfer time of under 8 milliseconds. Equipped with input power monitoring, environmental sensor support, and daisy-chain Ethernet connectivity, it maximizes uptime while minimizing deployment complexity. Includes 10 NEMA 5-15R outlets, dual NEMA 5-15P plugs, and a local high-visibility display.
| Specification | Details |
|---|---|
| Part Number | VA4N11A0 |
| Product Type | Rack Transfer Switch, Monitored Unit Level |
| Input Voltage | 100-120V |
| Input Current | 15A |
| Load Capacity | 1.4kW (120V) |
| Plug Type | (2) NEMA 5-15P |
| Receptacle Type & Quantity | (10) NEMA 5-15R |
| Transfer Time | <4–8 ms |
| Phase Synchronization | Not Required |
| Monitoring | Input power monitoring, 1 Phase (A), Environmental |
| Network Connectivity | Dual Gigabit Ethernet, Daisy-chains up to 50 units |
| Communication Protocols | SNMP, SSH, HTTPS, Syslog, Modbus TCP, and more |
| Remote Sensor Support | 1 RJ connection jack, up to 16 sensors |
| Mounting Configuration | Horizontal 19in / 483mm, 1U |
| Chassis Color | Black Powder Coat |
| Power Cable Length | 10 ft / 3m |
| Operating Temp. | Up to 60°C / 140°F |
| Warranty | 5-Year (with registration within 120 days) |
| Certifications | UL & c-UL 62368-1, RoHS, FCC Part 15 Class A |
| Dimensions (HxWxD) | 1.72in x 17in x 18in (44mm x 432mm x 457mm) |
| Weight (Shipped) | 17 lbs (7.71 kg) |
