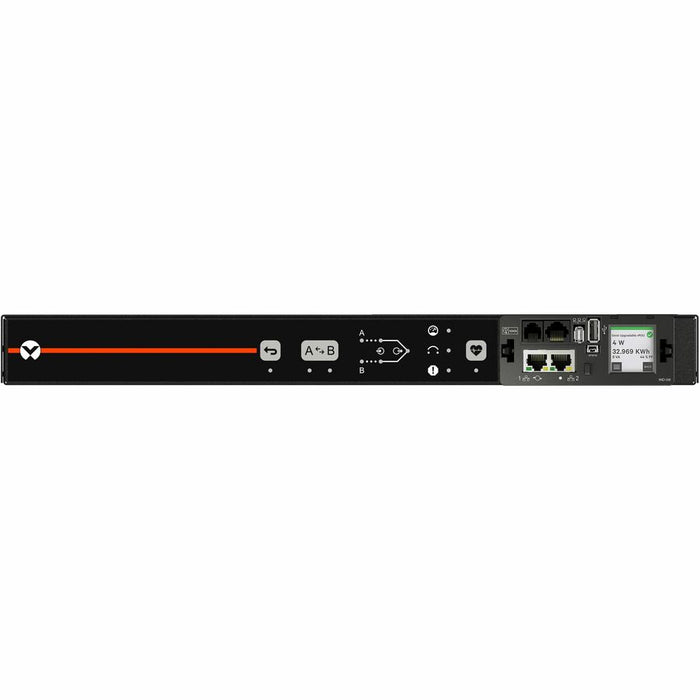

Vertiv PowerIT VA4N31A0 Rack Transfer Switch, 30A, 208V, Monitored
by Vertiv
The Vertiv PowerIT VA4N31A0 is a 30A, 208V horizontal rack transfer switch (RTS) designed to deliver automatic, redundant power to single-corded devices. With sub-8ms transfer time and no phase synchronization required, this monitored rPDU ensures uninterrupted uptime during power failures. It supports environmental monitoring, dual Ethernet ports with daisy chaining, and advanced protocols for full remote management.
| Feature | Specification |
|---|---|
| Model Number | VA4N31A0 |
| Type | Rack Transfer Switch (RTS) |
| Monitoring Level | Monitored - Input Power Level |
| Transfer Time | <4–8 ms |
| Power Capacity | 30A, 208V, 4.9kW |
| Input Plug Type | (2) NEMA L6-30P Twistlock |
| Output Receptacle | (1) NEMA L6-30R (Cord Attached) |
| Mounting | 19in / 483mm Horizontal Rackmount |
| Power Cords | 10 ft / 3 m |
| Network Connectivity | Dual 10/100/1000 Mbps Ethernet, Daisy Chain (50 max) |
| Display | LCD Touchscreen, Auto-Oriented |
| Monitoring Functions | kWh, W, VA, PF, V, A (Phase A) |
| Environmental Sensors | Supports up to 16 (via RJ jack) |
| Protocols Supported | SNMP (v1/v2c/v3), Modbus TCP, HTTPS, SSH, Syslog |
| Finish | Black Powder Coat (Steel Chassis) |
| Certifications | UL/c-UL 62368-1, RoHS, FCC Part 15 Class A |
| Dimensions (H x W x D) | 1.72" x 17" x 18" (44mm x 432mm x 457mm) |
| Weight | 19 lbs (8.62 kg) |
| Warranty | 5-Year Limited (with registration) |
| Country of Origin | USA (TAA & BAA COTS Compliant) |
