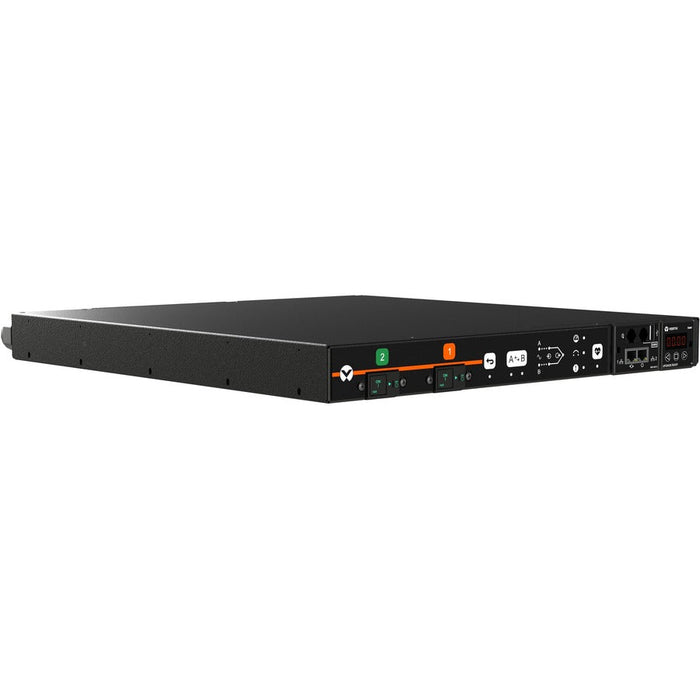

Vertiv Geist VA4G9100 Rack Transfer Switch PDU | 32A 230V | 12 C13/C19 Outlets | 1U
The Vertiv Geist VA4G9100 Rack Transfer Switch (RTS) is a unit-level monitored 1U rack PDU engineered to deliver high-availability power distribution with transfer switching capabilities. Equipped with (12) Combination C13/C19 outlets and dual input 1P+N+E plugs (IP44 rated), this 32A, 230V PDU provides 7.3kW of reliable power capacity.
Designed for redundancy and uptime, the RTS detects power loss on the primary source and transfers to the secondary source within 4–8 milliseconds—ensuring uninterrupted power for single-corded IT equipment. Lock-compatible outlets and high-retention receptacles minimize downtime due to accidental disconnections. Its hot-swappable, interchangeable monitoring device enables real-time unit-level monitoring via web protocols and SNMP.
Compliant with UL, RoHS, TAA, and China RoHS standards, this product is ideal for mission-critical environments. Backed by a 3-year warranty extendable to 5 years upon registration.
| Category | Details |
|---|---|
| Manufacturer | Vertiv |
| Part Number | VA4G9100 |
| Brand | Geist |
| Series / Model | G Series / AG03E1R6-12CF13-3PS6PS6B211-D |
| Product Type | Rack PDU with Transfer Switch (RTS) |
| Mounting | Horizontal, 1U Rack-Mount |
| Input Voltage | 230V AC (200–240V Range) |
| Output Voltage | 230V AC (200–240V Range) |
| Input Current | 32A |
| Power Capacity | 7.3kW |
| Input Plug | Dual Input |

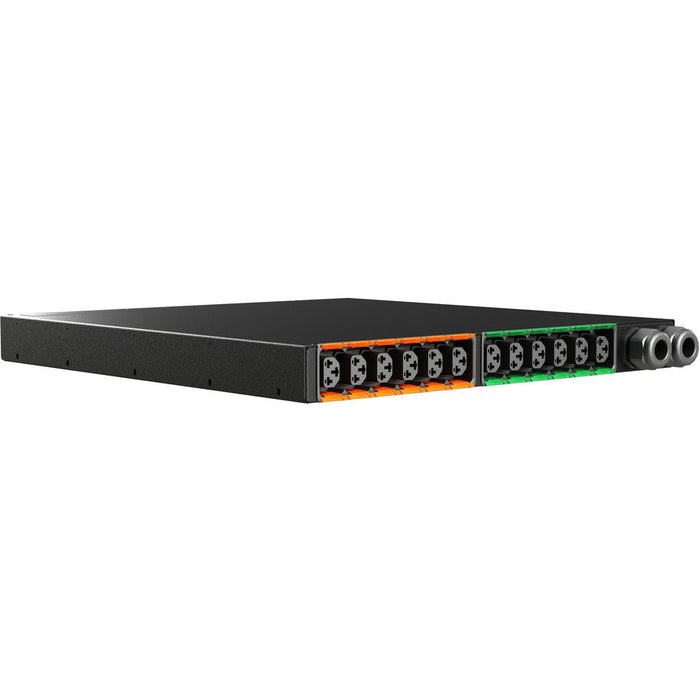

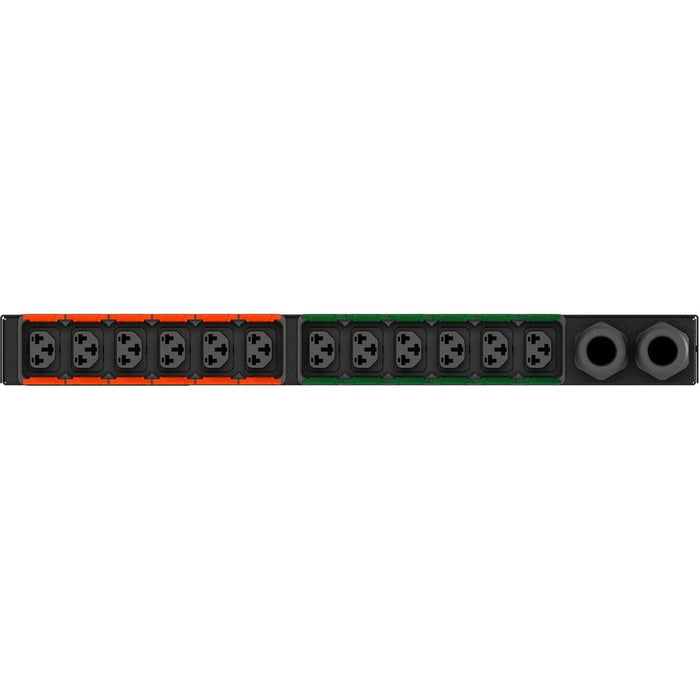

| Receptacles | 12 x Combination C13/C19 |
| Monitoring | Interchangeable Device |
| Switch Transfer Time | 4–8 ms |
| Outlet Features | Lock-Compatible |
| Protocols Supported | SNMP (v1/v2c/v3), HTTP/HTTPS, SSH, Syslog, NTP, RADIUS, Modbus TCP/IP, etc. |
| Ports | RJ-45 (Network), USB, Serial, RJ-12 |
| Certifications | UL Listed, c-UL 62368, RoHS, TAA, China RoHS |
| Warranty | 3-Year Standard (Extendable to 5 Years) |
| Shipping Weight | 19 lbs |
| Country of Origin | United States |
