Vertiv Geist VA4N3100 Rack Transfer Switch | 30A 208V 1U | (1) NEMA L6-30R Outlet
by Vertiv

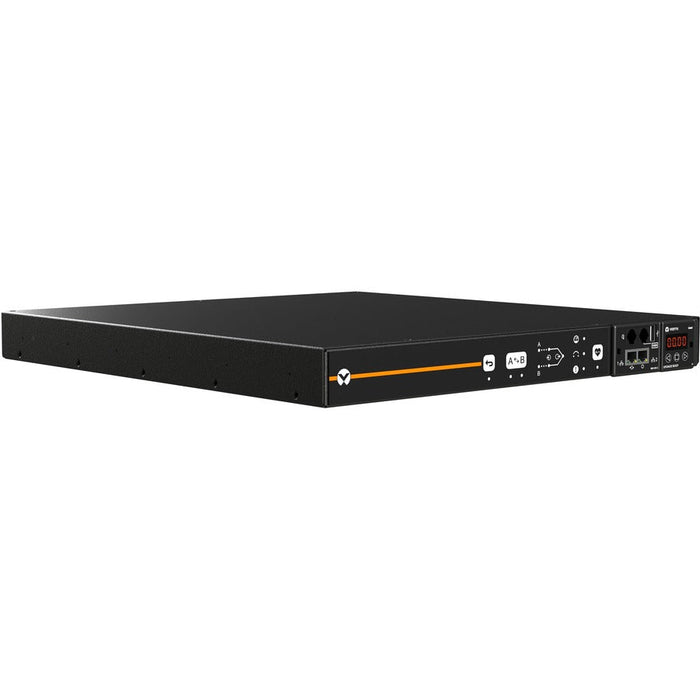

The Vertiv Geist VA4N3100 is a Rack Transfer Switch (RTS) with a unit-level monitored rPDU, engineered to deliver redundant power to single-corded devices. This 30A, 208V single-phase horizontal 1U unit includes one (1) NEMA L6-30R outlet and dual NEMA L6-30P inputs. With a maximum output of 4.9kW, the VA4N3100 ensures reliable continuity of power by automatically switching to a secondary source within 4–8 milliseconds in the event of a failure.
Equipped with an Interchangeable Monitoring Device (IMD), it offers remote power and environmental monitoring via protocols including SNMP, Modbus TCP/IP, and more. The RTS is TAA and RoHS compliant, with UL certifications, and ships with a 3-year warranty (extendable to 5 years upon registration).
| Category | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand Name | Geist |
| Series | N Series |
| Model | AN03E1R5-11TL68-3TL6TL6A011-D |
| Product Type | Rack Transfer Switch (RTS) / rPDU |
| Rack Height | 1U |
| Mounting Orientation | Horizontal |
| Input Voltage | 200–240V AC |
| Output Voltage | 200–240V AC |
| Input Plug Type | 2 x NEMA L6-30P |
| Output Receptacle | 1 x NEMA L6-30R |
| Max Power Capacity | 4.9kW |
| Current Rating | 30A |
| Monitoring | Unit Level Monitoring with Interchangeable Device |
| Remote Access | SNMP (v1/v2c/v3), Modbus TCP/IP, HTTP/HTTPS, etc. |
| Environmental Sensors | Optional |
| Certifications | UL, c-UL Listed 62368, RoHS, TAA Compliant |
| Warranty | 3 Years (extendable to 5 years upon registration) |
| Shipping Weight | 19 lbs |
| Product Color | Black |
| Country of Origin | United States |
