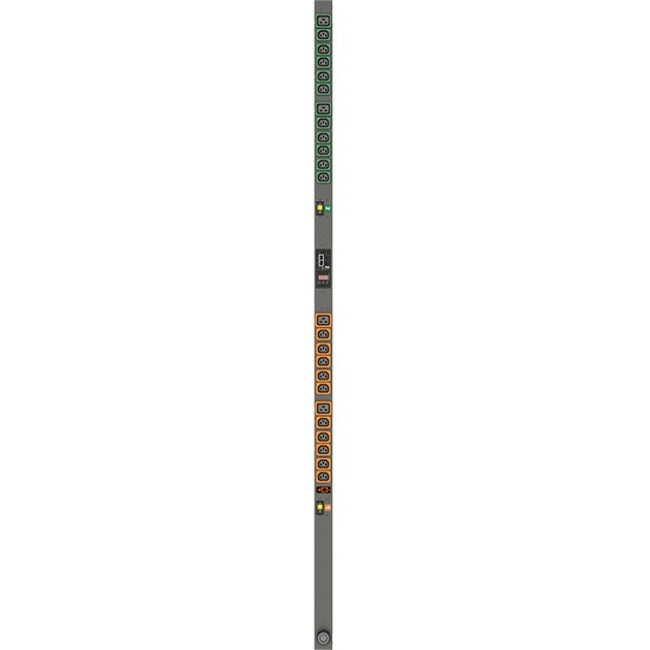

Vertiv Geist VP8641 Switched Rack PDU – (20) C13 | (4) C19 | L6-30P | 4.9kW | Vertical | rPDU
The Vertiv Geist VP8641 is a reliable 0U vertical switched rack PDU designed for high-performance power distribution in data centers and critical IT environments. Featuring (20) locking IEC C13 and (4) locking IEC C19 outlets, this unit supports a total output of 4.9kW and is powered by a NEMA L6-30P plug at 208V/30A.
Equipped with input power monitoring and remote outlet-level switching, the VP8641 allows you to control power usage and remotely reboot unresponsive devices. The integrated Interchangeable Monitoring Device (IMD) supports real-time monitoring, while Vertiv’s exclusive Visible Light Communication (VLC) technology enables power data access via mobile app.
With reliable construction, a compact footprint, and full certification, the VP8641 ensures high availability and operational control, backed by a 5-year Vertiv warranty when registered.
| Feature | Details |
|---|---|
| Brand | Vertiv Geist |
| Model Number | VP8641 |
| PDU Type | Switched |
| Input Plug Type | NEMA L6-30P |
| Input Voltage | 230V |
| Input Current | 30A |
| Power Capacity | 4.9kW (4900W) |
| Outlet Configuration | (20) U-Lock IEC C13, (4) U-Lock IEC C19 |
| Mount Type | Rack-mountable |
| Mount Orientation | Vertical (0U) |
| Dimensions (H x W x D) | 66.3" x 2" x 2.6" |
| Weight | 20 lbs |
| Monitoring Features | IMD with LED display, RJ-45, VLC via mobile app |
| Warranty | 5-Year Limited (with registration) |
| Product Condition | New and Factory Fresh |
| Country of Origin | United States |
