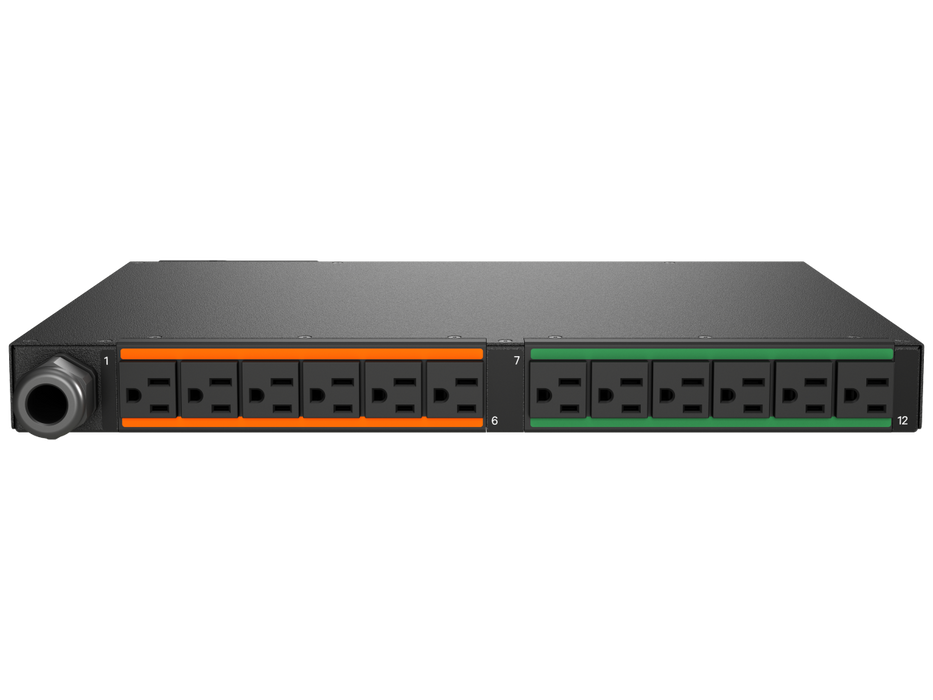

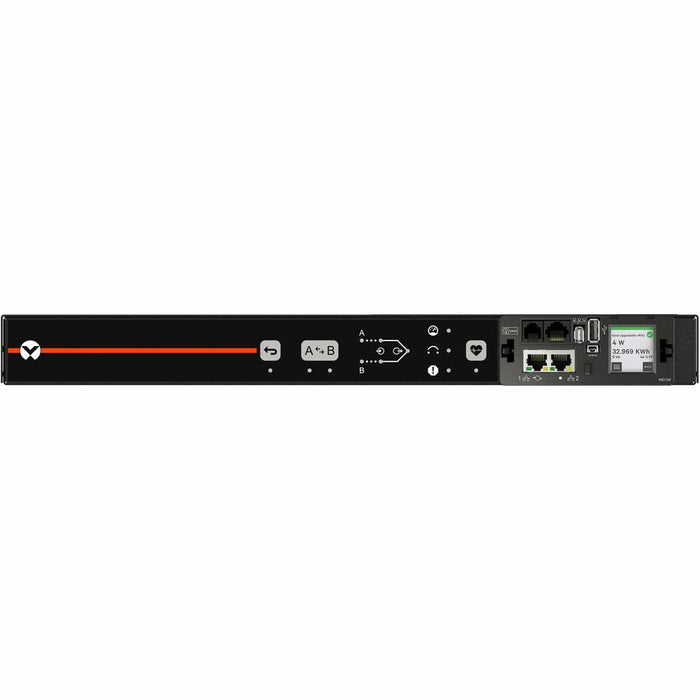

Vertiv VP5N31A0 Switched rPDU, 30A 120V, 12x5-20R, Horizontal
by Vertiv
The Vertiv VP5N31A0 is a switched rack PDU (rPDU) with unit-level monitoring, ideal for remotely managing power in critical IT environments. Designed for horizontal rackmount installation, it features 12 NEMA 5-20R outlets, a 30A 120V input, and a 10ft cord with NEMA L5-30P plug. The unit supports outlet-level switching, input power monitoring, and breaker current monitoring, plus optional environmental sensors and daisy-chained Ethernet connectivity. Upgrade-ready and built with fault-tolerant communication, the VP5N31A0 helps optimize uptime and simplify infrastructure management.
| Specification | Details |
|---|---|
| Model Number | VP5N31A0 |
| PDU Type | Switched, Unit Level Monitoring |
| Form Factor | Horizontal, 19 in / 483 mm |
| Input Voltage | 100–120V |
| Current Rating | 30A |
| Load Capacity | 2.8kW |
| Plug Type | NEMA L5-30P (10ft / 3m cord) |
| Receptacles | 12 x NEMA 5-20R |
| Outlets per Breaker | 6 per 20A magnetic breaker |
| Monitoring | Input monitoring, breaker current monitoring |
| Remote Power Management | Individual outlet switching, timed sequencing |
| Environmental Monitoring | Optional via remote sensors (RJ jack) |
| Network Connectivity | Dual 10/100/1000 Mbps Ethernet |
| Protocols | SNMP (v1/v2c/v3), HTTPS, Modbus TCP, etc. |
| Display | LCD touchscreen, auto-oriented |
| Indicators | 12 LEDs |
| Material | Steel chassis, black powder coat |
| Certifications | UL & c-UL 62368-1, FCC Part 15 Class A, RoHS |
| Dimensions (HxWxD) | 1.72 x 17 x 12 in / 44 x 432 x 305 mm |
| Weight | 12 lbs / 5.44 kg |
| Operating Temperature | Up to 60°C (140°F) |
| Country of Origin | USA (TAA and BAA COTS Compliant) |
| Warranty | 5-year (with registration), otherwise 3-year |
