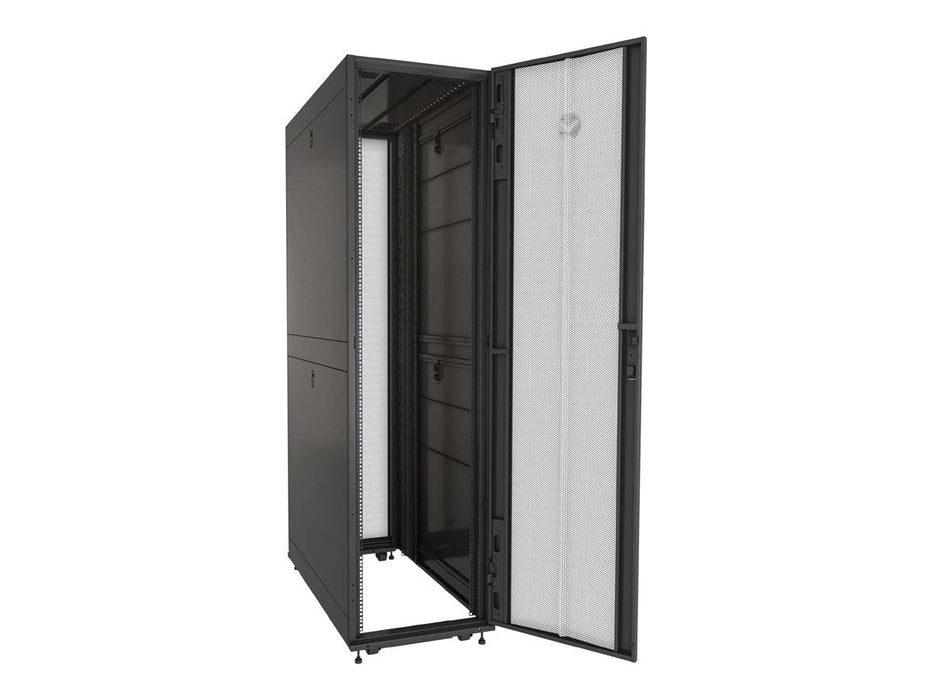

Vertiv VSC42NX30GLISV 42U Server Rack Enclosure | 800x1200mm | High-Density IT Cabinet
by Vertiv
The Vertiv VSC42NX30GLISV is a high-density 42U server rack enclosure designed for modern data centers and edge deployments. With dimensions of 800mm wide by 1200mm deep, this rack provides superior airflow, cable management, and equipment accessibility. It features 77% perforated reversible doors, tool-less top cable entry, full-depth adjustable rails, and integrated zero U space for mounting PDUs and accessories. The VSC series ensures durability, rapid deployment, and seamless integration with Vertiv’s power and cooling systems, making it ideal for scalable IT environments.
| Specification | Details |
|---|---|
| Brand | Vertiv |
| Model Number | VSC42NX30GLISV |
| Form Factor | 42U Rack Enclosure |
| Rack Dimensions (HxWxD) | 2000mm x 800mm x 1200mm |
| Usable Rack Units | 42U |
| Material | Powder-coated steel (RAL 7021 - Black) |
| Front Door | Single locking, 77% perforated |
| Rear Doors | Split locking, 77% perforated |
| Side Panels | Split locking with slam latch |
| Top Panel | Tool-less removable, 4x cable entry holes |
| Cable Management | Dual full-height zero U brackets |
| Mounting Rails | 2 pairs of 19” EIA rails, fully adjustable |
| Caster & Leveling Feet | Included, low profile |
| Load Capacity (Static/Dynamic) | Up to 3000 lbs static / 2250 lbs dynamic |
| Certifications | EIA-310E, UL2416, RoHS, REACH |
| Included Accessories | Cage nuts/screws, tools, keys, brackets |
