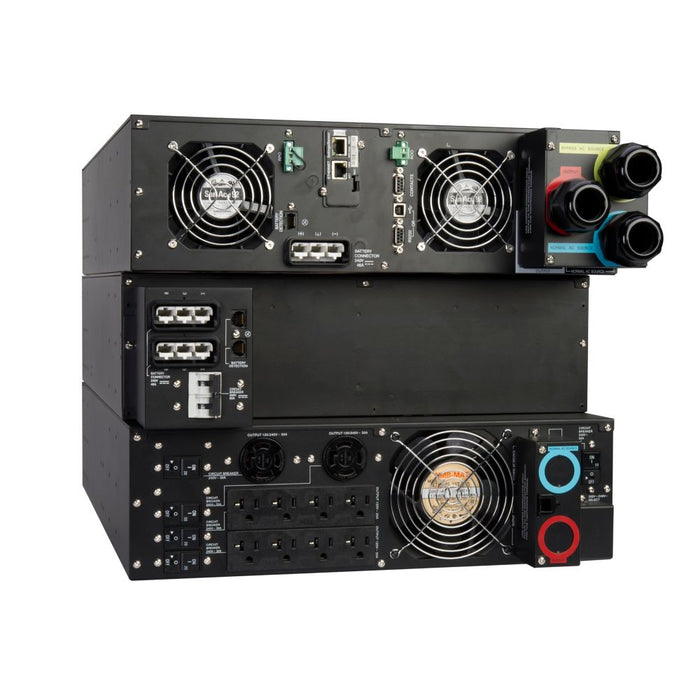

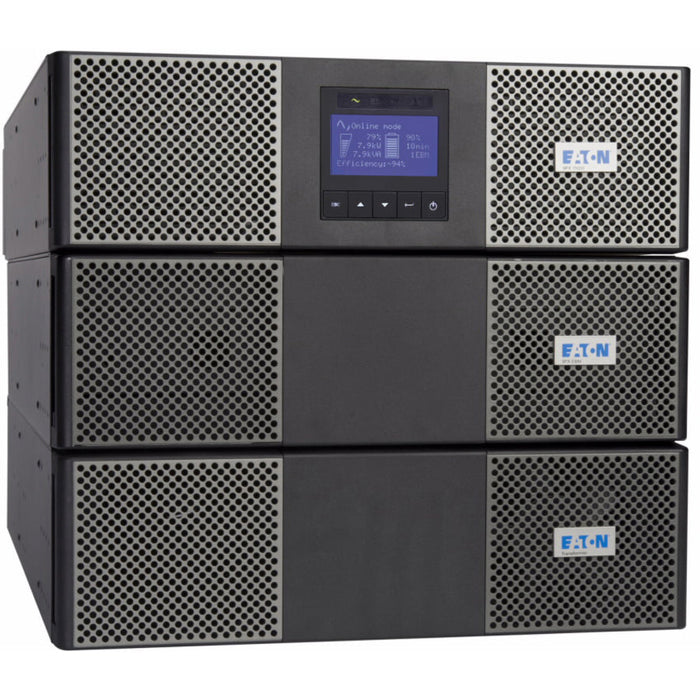

Eaton 9PX11KTF11 UPS System, 11kVA/10kW, 208V, 9U Rack/Tower, Network Card
The Eaton 9PX11KTF11 is a high-performance online double-conversion UPS delivering 11 kVA / 10 kW of reliable power with a compact 9U rack/tower design. Equipped with a Gigabit Network Card (NETWORK-M3), hot-swappable internal batteries, and extended battery module support, it offers industry-leading energy efficiency (94%) and intelligent ABM battery management. This model includes hardwired input, (8) 5-20R and (2) L14-30R receptacles, and supports up to 5 EBMs or 12 with a supercharger. ENERGY STAR® certified and fully equipped for mission-critical IT, healthcare, and industrial environments.
| Specification | Details |
|---|---|
| Product Name | Eaton 9PX UPS |
| Catalog Number | 9PX11KTF11 |
| Topology | Online, Double-conversion |
| Power Rating | 11 kVA / 10 kW |
| Output Voltage | 208V (Selectable: 200/208/220/230/240/250V) |
| Input Voltage | 208V (Selectable) |
| Input Connection | Hardwired |
| Output Connections | (8) 5-20R, (2) L14-30R, Hardwired |
| Output Power Factor | 0.91 |
| Waveform | True Sine Wave |
| Efficiency | Up to 94% |
| Rack Height | 9U |
| Form Factor | Rack/Tower convertible |
| Dimensions (HxWxD) | 15.3 x 17.3 x 27.6 in |
| Weight | 377 lb |
| Battery Type | Sealed lead-acid, hot-swappable |
| Extended Battery Support | Up to 5 EBMs (9PXEBM240RT), or 12 with SC240RT |
| Battery Management | ABM Technology (3-stage charging) |
| Bypass | Internal bypass included |
| Network Card | NETWORK-M3 included (Gigabit SNMP) |
| Communications | USB, RS232, relay, SNMP, remote ON/OFF |
| Software Support | Eaton Intelligent Power Software Suite |
| Noise Level | <45 dB at 1 meter |
| Operating Temp | 0° to 40°C (32° to 104°F) |
| Humidity | 0–95% non-condensing |
| Certifications | ENERGY STAR, cULus, NOM, CE, FCC Part 15, IEC 62040-2 |
| Warranty | 3-year limited (electronics & battery) |
| UPC | 743172039873 |
Package Contents:
-
9PX11KPM UPS Power Module (3U)
-
9PXEBM240RT Extended Battery Module (3U)
-
9PXTFMR11 Stepdown Transformer (3U)
-
Gigabit Network Card (Network-M3)
-
Rail Kit, Tower Pedestals, RS-232 & USB cables
-
Quick Start Guide, Cable Gland
