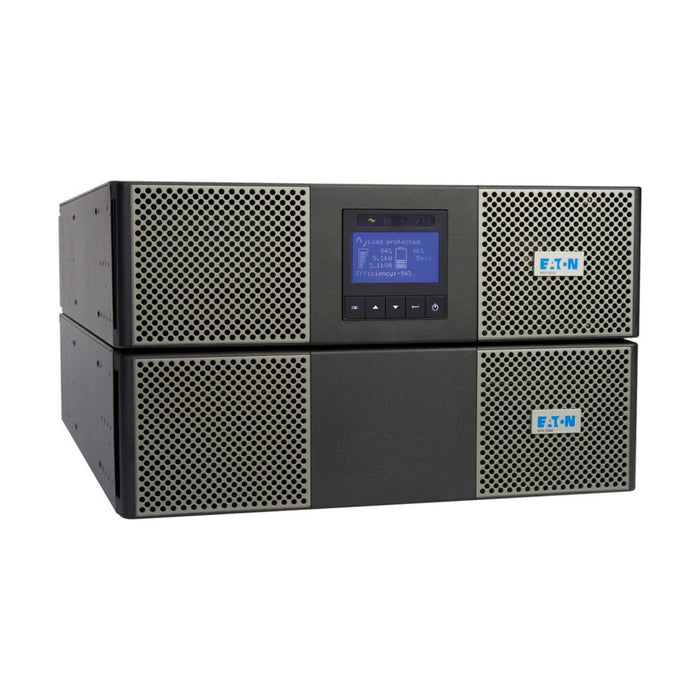

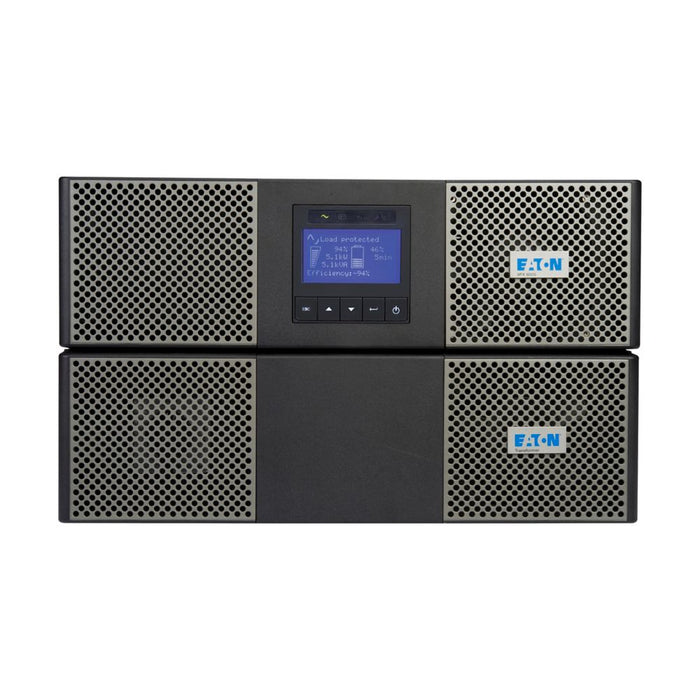

Eaton 9PX5KP2 5kVA/4.5kW Rack/Tower UPS with Network Card, Hardwired Input/Output, 6U
by Eaton
The Eaton 9PX5KP2 delivers robust double-conversion online backup power protection in a compact 6U rack/tower convertible form factor. With a 5000 VA / 4500 W capacity and high-efficiency operation up to 93%, it provides reliable uptime for mission-critical IT and electrical infrastructure. Equipped with a pre-installed Gigabit Network Card (NETWORK-M3), this UPS ensures seamless remote monitoring and management. Designed for hardwired input and output, it supports 120/208V configurations and includes advanced battery management (ABM) to prolong battery life and optimize performance. Ideal for server rooms, network closets, and industrial applications requiring secure and scalable power protection.
| Specification | Details |
|---|---|
| Model Number | 9PX5KP2 |

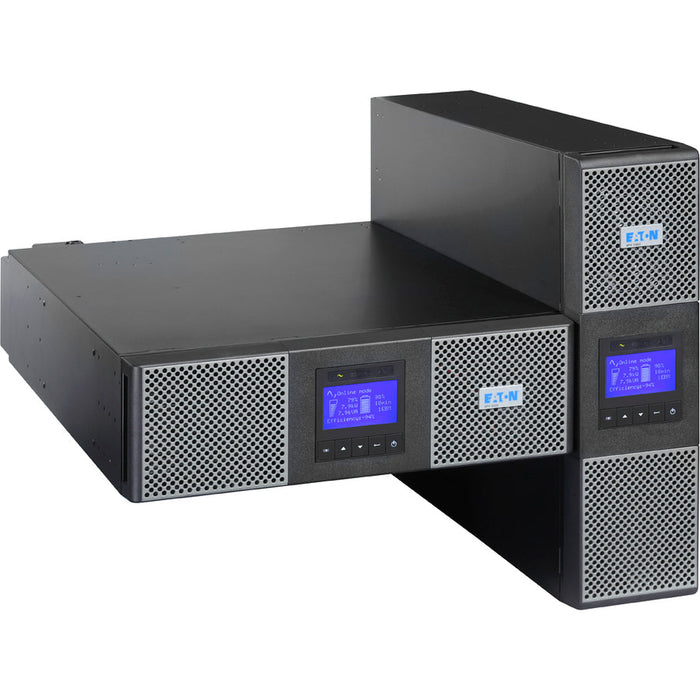

| Form Factor | Rack/Tower (6U) |
| Topology | Online Double Conversion |
| Power Rating | 5000 VA / 4500 W |
| Input Voltage | 208V default (200/208/220/230/240V) |

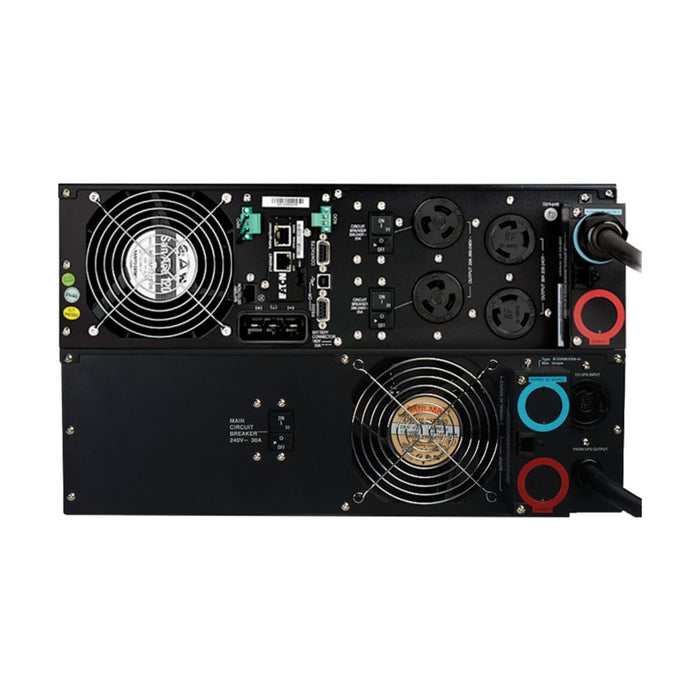

| Input Connection | Hardwired |
| Output Voltage | 208V default (200/208/220/230/240V) |
| Output Connection | Hardwired |
| Output Waveform | True sine wave |
| Output Frequency | 50/60 Hz |
| Efficiency (Full Load) | Up to 93% |
| Output Power Factor | 0.9 |
| Battery Type | Sealed lead-acid (Hot-swappable) |
| Battery Runtime (Typical) | Configurable with EBMs (up to 4x 9PXEBM180RT) |
| Battery Management | ABM 3-stage charging |
| Communication Ports | USB, RS232, SNMP/Web (Gigabit Network Card included) |

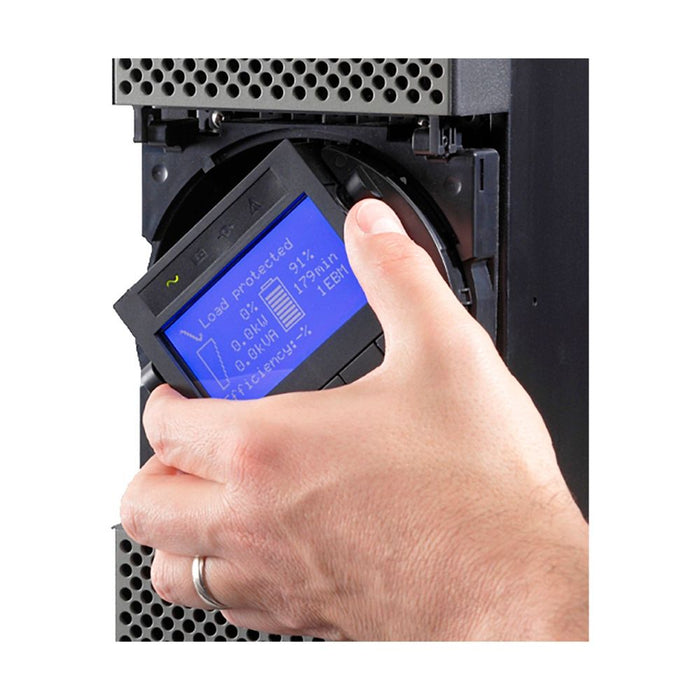

| Display | Graphical LCD + 5-button menu |
| Mounting Hardware | 4-post rail kits, tower pedestals |
| Certifications | ENERGY STAR®, cULus, CE, NOM, FCC Part 15 Class A |
| Dimensions (HxWxD) | 10.2" x 17.3" x 28.4" |
| Weight | 201 lb |
| Noise Level | <45 dB at 1 meter |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Warranty | 3-Year Factory Warranty (Parts, Electronics, Battery) |
| UPC | 743172039798 |
