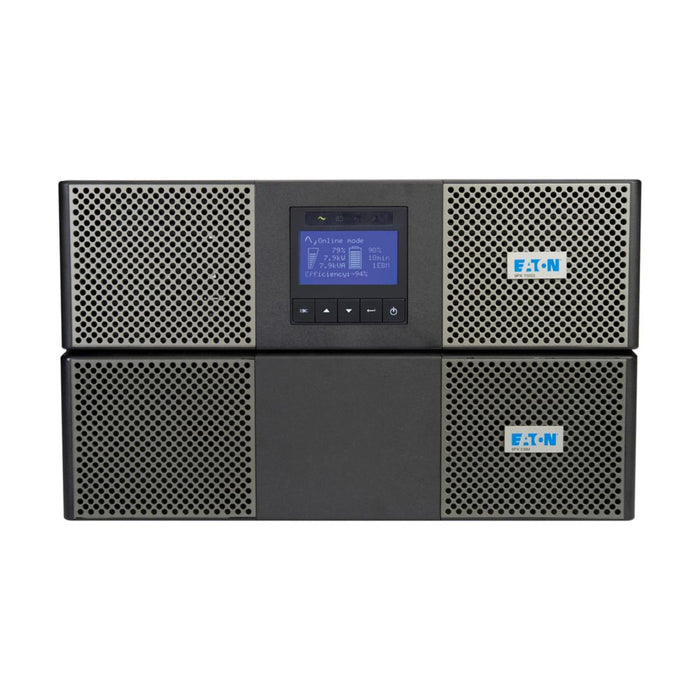

Eaton 9PX8K 8kVA UPS, 7.2kW, 6U Rack/Tower, Network Card, Hardwired Input, (3) L6-30R, 208V
by Eaton
The Eaton 9PX8K is a high-performance, double-conversion online UPS designed for superior power protection in IT, industrial, and critical infrastructure environments. With an output of 8 kVA / 7.2 kW and a compact 6U rack/tower form factor, it ensures maximum uptime and flexibility. It includes a Gigabit Network Card (Network-M3) for seamless monitoring, supports extended battery runtimes, and delivers 94% efficiency at full load. Featuring hardwired input, (3) L6-30R receptacles, and hot-swappable batteries, the 9PX8K is ENERGY STAR® certified and seismic-compliant, making it ideal for demanding enterprise setups.
| Category | Specification |
|---|---|
| Brand | Eaton |
| Model | 9PX8K |
| Topology | Online / Double-conversion |
| Power Capacity | 8 kVA / 7.2 kW |
| Output Voltage | 208V (Configurable: 200–250V) |
| Output Receptacles | (3) L6-30R + Hardwired |
| Input Voltage | 208V (Configurable: 200–250V) |
| Input Connection | Hardwired |
| Efficiency | 94% at full load |
| Form Factor | Rack/Tower |
| Rack Size | 6U |
| Dimensions (HxWxD) | 10.2 in x 17.3 in x 30 in |
| Weight | 205 lb |
| Battery Type | Sealed lead-acid, Hot-swappable |
| Extended Battery | Up to 5 EBMs (12 with SC240RT) |
| Battery Management | ABM® 3-stage charging with life extension |
| Network Management | Gigabit Network Card (Network-M3) included |
| Communications | USB, RS-232, Mini-Terminal Blocks, Web/SNMP |
| Certifications | ENERGY STAR, cULus, NOM, Seismic (OSHPD), CE, FCC |
| BTU Output | 1760 BTU/hr (Online), 2375 BTU/hr (Battery) |
| Noise Level | <45 dB @ 1 meter |
| Operating Temp | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 0–95% non-condensing |
| Altitude | <1000m nominal, 10% derating every 1000m up to 3000m |
| Warranty | 3-Year Limited (Parts, Electronics, Batteries) |
| Included Accessories | Network card, Extended battery module, Bypass module, 4-post rail kit, cables, manuals |
