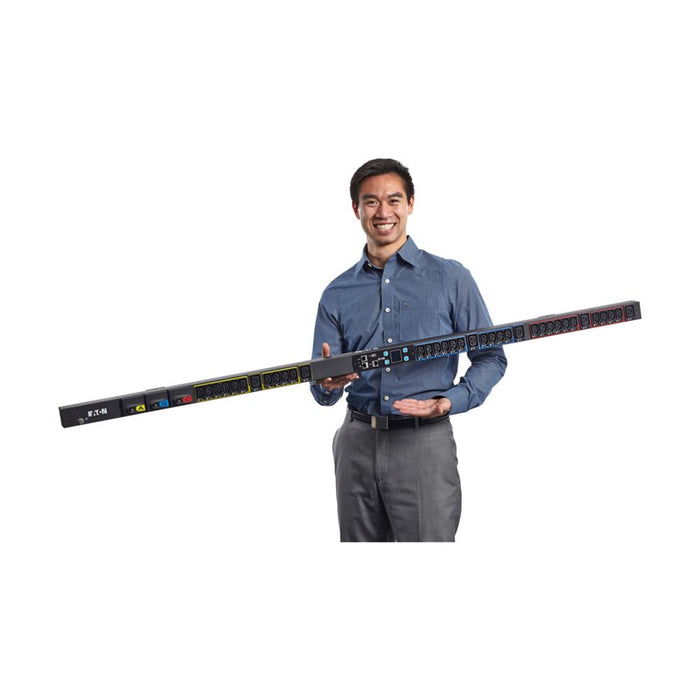

Eaton EMA325-10 Managed Rack PDU, 3PH, 5.76kW, 24 Outlets, 0U, L21-20P
by Eaton
The Eaton EMA325-10 is a three-phase managed rack PDU designed to provide advanced power distribution, remote outlet-level control, and robust monitoring for high-density IT environments. With a 0U vertical form factor, 24 secure outlet grips (18 C13 and 6 C19), and L21-20P input, this unit delivers 5.76 kW of reliable power across your infrastructure. Engineered for intelligent power management, it features RS-232 connectivity, outlet-level switching, and a durable 10 ft cord, all within a RoHS-compliant and UL-listed design. Ideal for data centers requiring remote access, real-time monitoring, and enhanced uptime.
| Specification | Details |
|---|---|
| Catalog Number | EMA325-10 |
| Product Type | Managed Rack PDU |
| Form Factor | 0U (Vertical) |
| Phase | Three-phase |
| Max Power Capacity | 5.76 kW |
| Amperage | 16A |
| Input Voltage | 120/208V |
| Input Connection | NEMA L21-20P |
| Output Outlets | 24 (18 × C13, 6 × C19) with outlet grip |
| Cord Length | 10 ft |
| Frequency | 50–60 Hz |
| Outlet Control | Yes (Remote) |
| Interface | RS-232 |
| Operating Temp. | 0°C to 60°C (32°F to 140°F) |
| Dimensions (L×W×H) | 66.5 in × 2.05 in × 2.56 in |
| Weight | 19.8 lb |
| Certifications | UL Listed, RoHS Compliant |
| Warranty | 3 Years |
