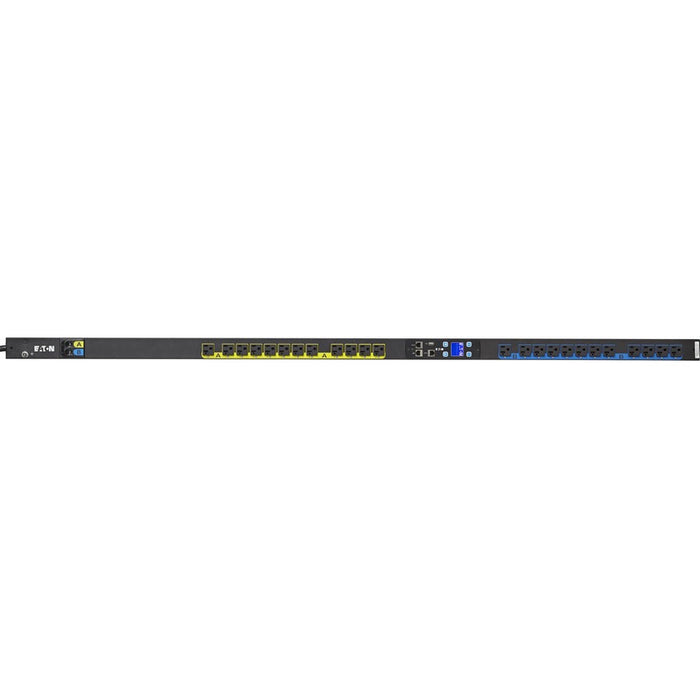

Eaton EMA108-10 Managed PDU, 1PH, 0U, 24A, 120V, 24x5-20R, L5-30P, 10 ft Cord, TAA
by Eaton
The Eaton EMA108-10 is a single-phase, 0U vertical managed PDU (Power Distribution Unit) designed for high-density IT environments. Featuring 24 individually controlled 5-20R outlets and a NEMA L5-30P input plug with a 10-foot cord, this PDU delivers up to 2.88kW of power at 120V. Equipped with outlet-level control, serial interface (RS-232), and TAA compliance, it’s ideal for remote management, power monitoring, and government-regulated applications. Its compact, space-saving 0U form factor makes it perfect for mounting vertically in standard IT racks.
| Specification | Details |
|---|---|
| Product Name | Eaton Managed PDU |
| Catalog Number | EMA108-10 |
| UPC | 743172069276 |
| Form Factor | 0U (Vertical) |
| Phase | Single-phase |
| Input Voltage | 120V |
| Amperage Rating | 24A |
| Maximum Wattage | 2.88 kW |
| Input Plug Type | NEMA L5-30P |
| Cord Length | 10 ft |
| Outlets | 24 (24x 5-20R) |
| Outlet Control | Yes (Managed) |
| Frequency | 50–60 Hz |
| Serial Interface | RS-232 |
| Temperature Range | 0°C to 60°C (32°F to 140°F) |
| Compliance | TAA Compliant |
| Certifications | UL Listed |
| Dimensions (L x W x H) | 77.6 in x 7.7 in x 9.3 in |
| Weight | 17.3 lb |
| Warranty | 3 Years |
