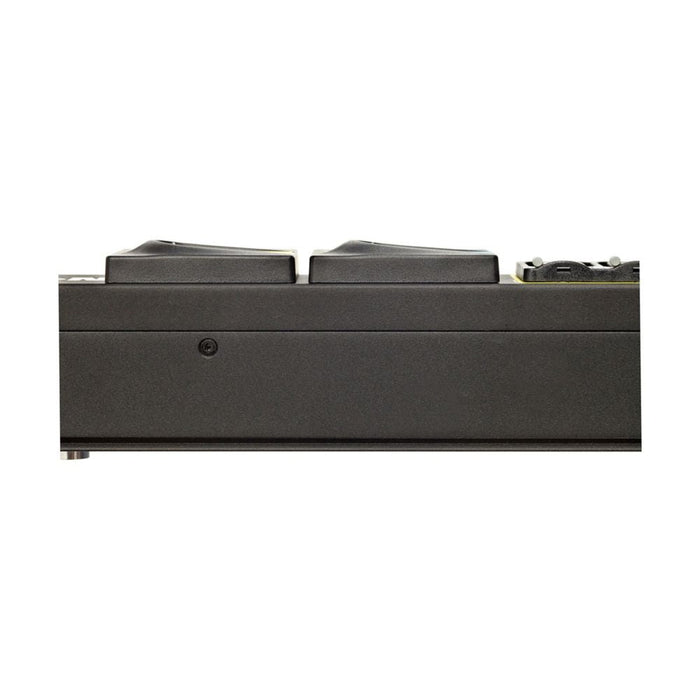

Eaton EMI105-06 Metered Input ePDU, 0U, 1PH, 11.5kW, 48A, 200–240V, (30) C13 & (6) C19, 6ft Cord
by Eaton
The Eaton EMI105-06 Metered Input PDU delivers reliable, space-saving power distribution for high-density IT environments. Designed for vertical (0U) rack installation, this single-phase ePDU supports up to 11.5kW of power at 48A and provides 36 outlets—including (30) C13 and (6) C19 with outlet grips to secure connections. It features IEC 309-360P6W input, a 6 ft power cord, network (Ethernet) and RS-232 interfaces, and is compatible with Eaton’s advanced monitoring and management tools. Built with UL listing and a 3-year warranty, this PDU ensures efficient and metered input-level monitoring in modern data centers.
| Specification | Details |
|---|---|
| Catalog Number | EMI105-06 |
| Form Factor | 0U (Vertical) |
| Phase | Single-phase |
| Input Voltage | 200–240V |
| Input Plug | IEC 309-360P6W |
| Cord Length | 6 ft |
| Max Wattage | 11.5 kW |
| Amperage Rating | 48A |
| Outlets | 36 Total – (30) C13 with grip, (6) C19 with grip |
| Outlet Control | No |
| Monitoring | Metered Input |
| Interfaces | Ethernet, RS-232 |
| Frequency | 50–60 Hz |
| Operating Temp. | 0° to 60°C (32° to 140°F) |
| Certifications | UL Listed |
| Warranty | 3-Year Limited |
| Dimensions (L x W x H) | 66.5 x 2.05 x 2.09 in |
| Product Weight | 0.0001 lb (as listed) |
| UPC | 786685907192 |
