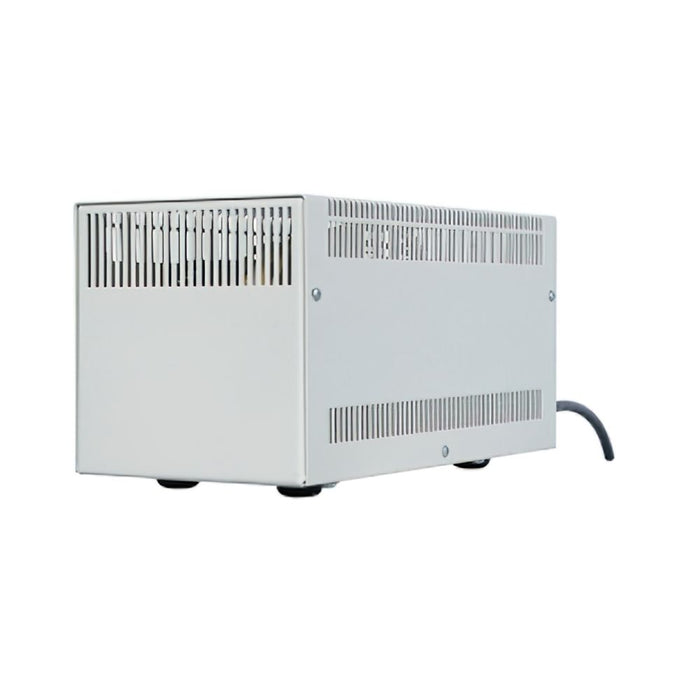

Eaton T100H-2500 Power-Suppress 100 Line Conditioner Transformer, 2500 VA, 120/240V, Hardwired
by Eaton
The Eaton T100H-2500 Power-Suppress 100 is a high-performance line conditioner transformer designed to deliver clean, reliable power in demanding environments. With a capacity of 2500 VA and 93–97% efficiency at max load, this unit supports 120/240V input and output and features a hardwired installation. It is cUL Listed and certified to meet UL and ANSI/IEEE standards, making it ideal for both commercial and industrial applications. Its robust construction includes a 2-year warranty (and 5-year coverage for the core and coil), ensuring long-term durability and protection.
| Specification | Details |
|---|---|
| Model Number | T100H-2500 |
| Product Name | Eaton Power-Suppress 100 |
| VA Rating | 2500 VA |
| Input Voltage | 120/240V |
| Output Voltage | 120/240V |
| Frequency | 63 Hz |
| Topology | Line Conditioner |
| Efficiency at Max Load | 93–97% typical |
| Installation Type | Hardwired |
| Certifications | cUL Listed, UL 1449, UL 1012, ANSI/IEEE Std C57.12.91, ANSI/IEEE Std C62.41 |
| Compliance | Meets FCC Category A |
| Warranty | 2 years (5 years for core and coil) |
| Dimensions (H x W x D) | 17 x 14 x 20 in |
| Weight | 58 lb |
| UPC | 743172021113 |
| Catalog Notes | 120/240V IN, 120/240V OUT |
