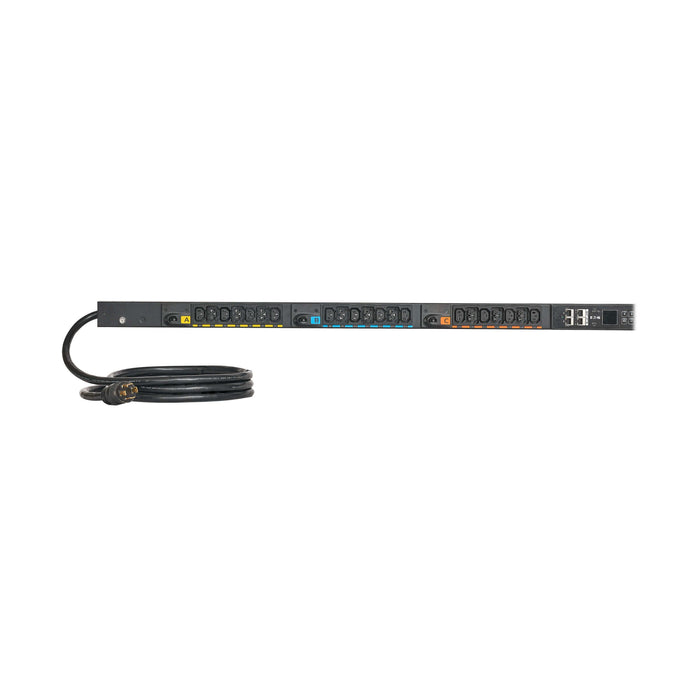

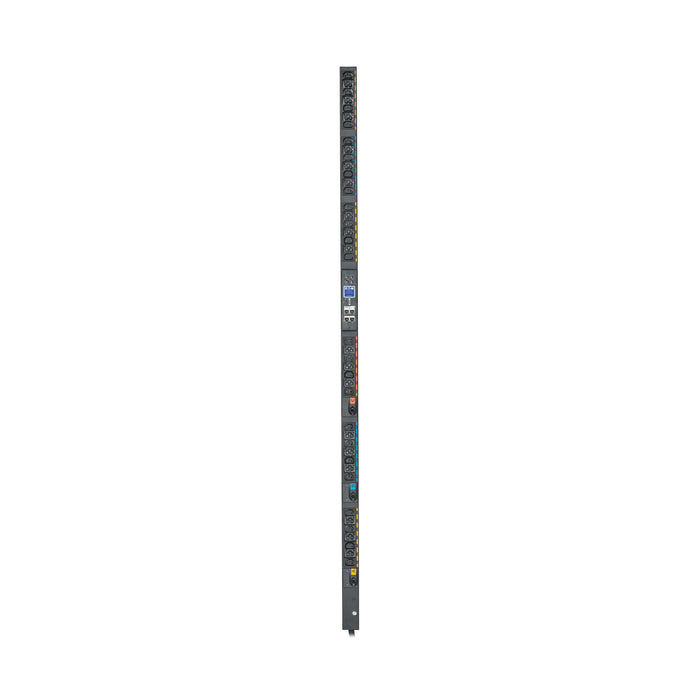

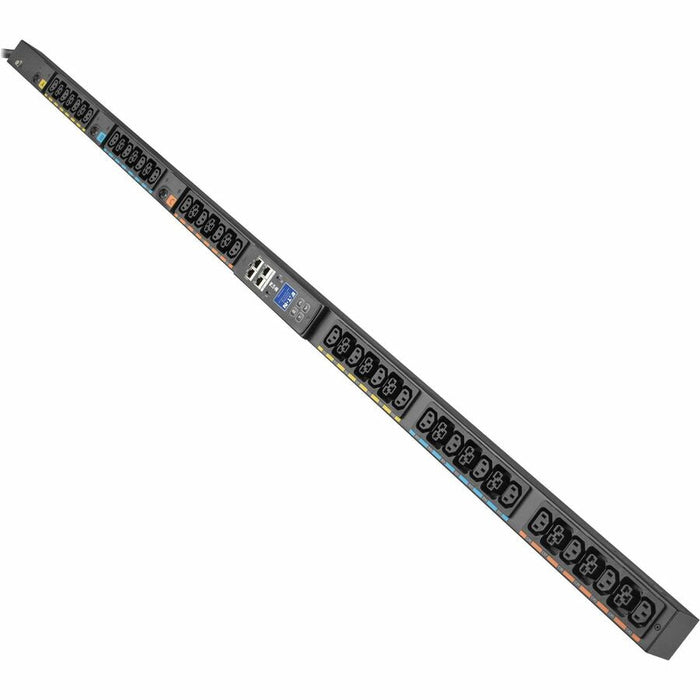

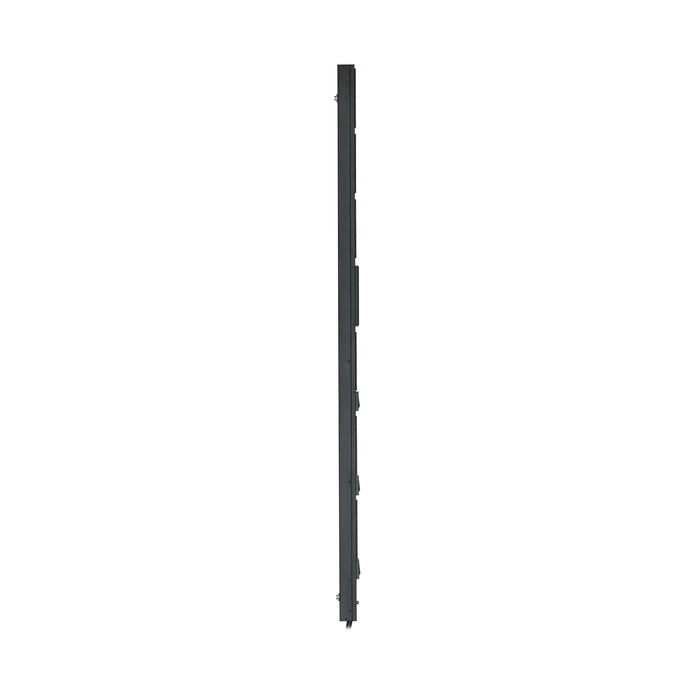

Eaton 3-Phase Metered Input Rack PDU G4, 208V, 42 Outlets, 8.6kW, L15-30P, 0U

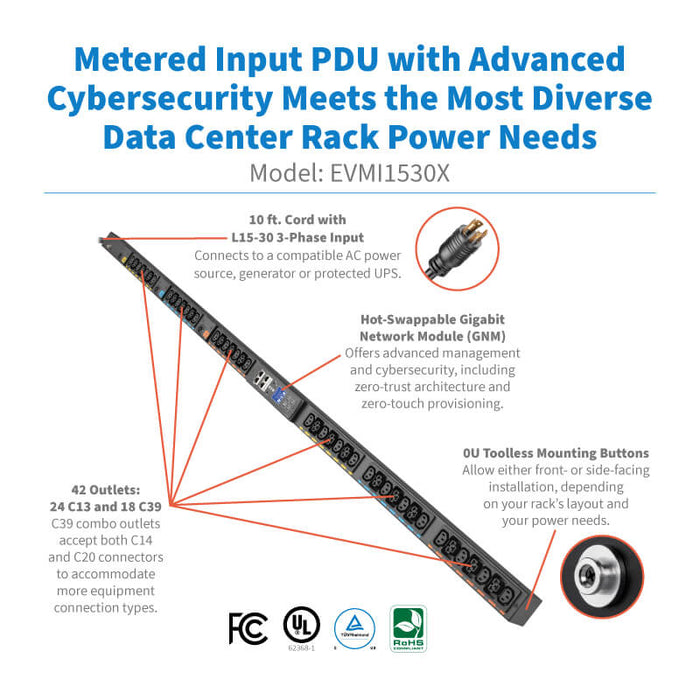

The Eaton EVMI1530X is a 3-phase Metered Input Rack PDU G4 designed for secure, scalable power distribution in enterprise and colocation data centers. With 42 outlets—including 24 C13 and 18 universal C39 receptacles—this 0U vertical PDU delivers 8.6kW of power through a 10 ft. cord with NEMA L15-30P input.
Equipped with an embedded hot-swappable Gigabit Network Module (GNM), the EVMI1530X features advanced cybersecurity protocols including chain-of-trust encryption, secure firmware boot, and zero-trust architecture. Its support for Eaton Brightlayer software allows for real-time monitoring, remote management, and automated alerts.
Toolless mounting, color-coded load banks, and daisy-chain capability for up to 40 units make it ideal for streamlined deployments. Optional environmental sensors offer additional insight into rack conditions, ensuring operational resilience and uptime.
| Specification | Details |
|---|---|
| Model Number | EVMI1530X |
| Input Voltage / Phase | 208V / 3-Phase |
| Input Plug Type | NEMA L15-30P |
| Input Cord Length | 10 ft. (3.05 m) |
| Max Input Current | 30A |
| Power Capacity | 8.6kW / 8600W |
| Output Receptacles | 24 x C13, 18 x C39 (C14/C20 compatible) |
| Outlet Banks | 6 color-coded with per-bank circuit breakers |
| Form Factor | 0U Vertical |
| Material | Aluminum, Black |
| Dimensions (H x W x D) | 68.1 x 2.09 x 2.08 in (172.97 x 5.08 x 5.28 cm) |
| Weight | 16.54 lbs (7.5 kg) |
| Surge Protection | (3) 2-pole 20A Circuit Breakers |
| Network Interface | Gigabit Ethernet, Serial |
| Mounting | Toolless, 0U rack (42U compatible) |
| Environmental Monitoring | Optional Sensors Supported |
| Operating Temp | 0° to 60°C (32° to 140°F) |
| Certifications | UL 62368-1, FCC Class A, RoHS, cTUVus |
| Warranty | 3-Year Limited |
