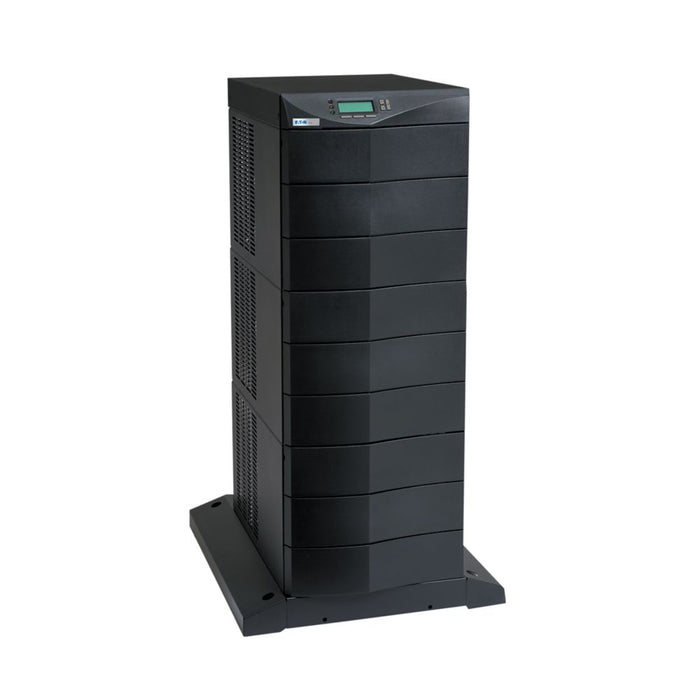

Eaton 9170+ UPS 9 kVA with Power Distribution, 9-Slot Enclosure (PW9S9K-PD)
by Eaton
The Eaton 9170+ PW9S9K-PD UPS is a modular, scalable, and highly reliable power protection system designed for mission-critical IT and industrial applications. With an output capacity of 9 kVA / 7.5 kW and double-conversion online topology, it delivers continuous, clean power to sensitive equipment. This model features a 9-slot black enclosure, hot-swappable sealed lead-acid batteries, and ABM® technology that extends battery life by 50%.
Built for high efficiency and minimal noise, the PW9S9K-PD supports a variety of outlet types, including (2) L14-30R, (2) L6-30R, and (12) 5-20R, and integrates a user-friendly LCD interface and expansion slots for future upgrades. Ideal for server rooms, medical facilities, and telecom environments.
| Category | Details |
|---|---|
| Model | Eaton 9170+ UPS (PW9S9K-PD) |
| Topology | Online / Double-conversion |
| VA Rating | 9 kVA |
| Wattage | 7.5 kW |
| Battery Type | Sealed, lead-acid |
| Battery Management | ABM® technology, 3-stage charging |
| Hot-Swappable Battery | Yes |
| Input Voltage Range | 176–276 V |
| Input Connection | Fixed connection |
| Input Power Factor | 0.98 |
| Output Receptacles | (2) L14-30R, (2) L6-30R, (12) 5-20R |
| Efficiency at Max Load | 88% |
| User Interface | 4x20 character backlit display, programmable |
| Communications | RS-232 (DB9) |
| Expansion Slots | 2 |
| Noise Level | <50 dB at 1 meter |
| Operating Temp | 0° to 40°C (32° to 104°F) |
| Relative Humidity | 50–90% non-condensing |
| Phase (Input) | Single-phase |
| Color | Black |
| Enclosure Type | 9-slot modular cabinet |
| Dimensions (HxWxD) | 47 x 24 x 28.5 in |
| Weight | 389 lb |
| Certifications | UL, cUL, FCC Cat. A, ANSI/IEEE C62.41 |
| Warranty | 2-year limited |
