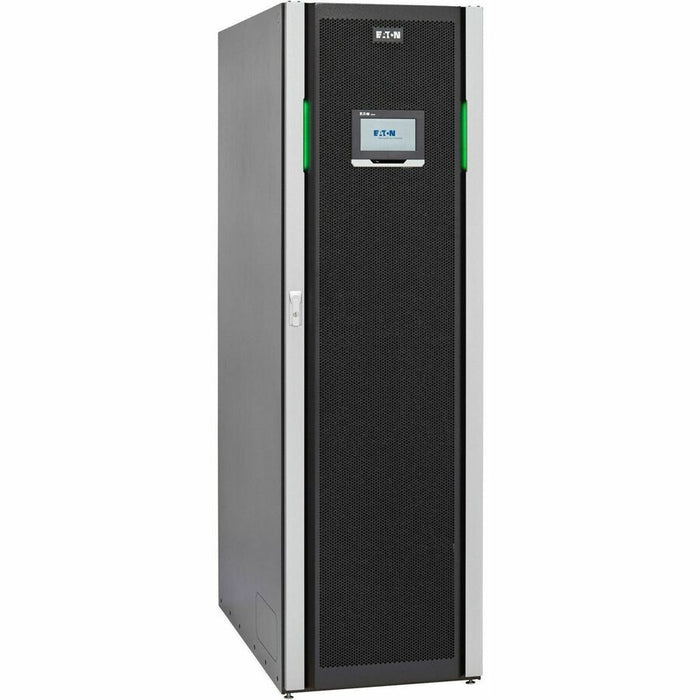

Eaton 93PM 50kW External UPS, 480V AC, On-Line Double Conversion
The Eaton 93PM 50kW External UPS is a high-performance, three-phase uninterruptible power supply engineered for modern data centers. Designed with efficiency and flexibility in mind, it delivers reliable double-conversion power protection while achieving up to 99% energy efficiency in Eaton’s Energy Saver System (ESS) mode.
This UPS supports 480V AC input, provides a power factor of 0.99, and includes USB-based remote management for simplified monitoring and control. Featuring a space-saving external form factor, touch-screen LCD, and advanced technologies like Soft Start and parallel capability, the 93PM reduces energy waste, lowers cooling requirements, and minimizes total cost of ownership.
Whether deployed in high-density data environments or mission-critical applications, the Eaton 93PM provides unparalleled protection, smart functionality, and top-tier energy performance.
| Specification | Details |
|---|---|
| Brand | Eaton |
| Product Line / Model | 93PM |
| Manufacturer | Powerware Systems |
| Product Type | UPS (Uninterruptible Power Supply) |
| UPS Technology | On-line, Double Conversion |
| Power Capacity | 50 kW |
| Input Voltage | AC 480V |
| Output Voltage | AC 120/230V |
| Frequency | 50/60 Hz |
| Efficiency | Up to 99% (ESS Mode), 97% (Double Conversion Mode) |
| Power Factor | 0.99 |
| Input Connector Type | Hardwire 4-wire |
| Interfaces Provided | USB (Type B), EPO (Emergency Power Off) |
| Remote Management Interface | USB |
| Features | Touch-screen LCD, ESS, Parallel Capability, Soft Start |
| Cable Entry | Top and Bottom |
| Form Factor | External |
| Color | Black |
| Dimensions (H x D) | 74 in x 42 in |
| Certifications | UL 1778, UL 924, cULus, FCC Part 15 B Class A, IEC 61000-4-5 |
| Software Included | Eaton Intelligent Power Manager |
| ENERGY STAR / EPEAT / TCO | Not Certified |
| Packaged Quantity | 1 |
