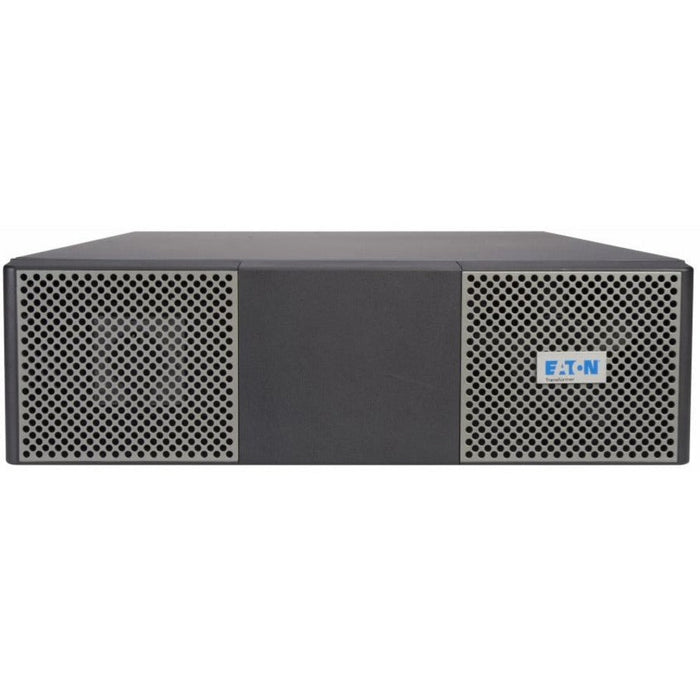

Eaton 9PXTFMR11 Stepdown Transformer – 3U, Hardwired Input, 10kVA, 120V Output
by Eaton
The Eaton 9PXTFMR11 is a 3U rack/tower-mountable stepdown transformer engineered for compatibility with Eaton 9PX 8–11 kVA UPS models. This transformer converts high-voltage input to 120V output, making it ideal for environments requiring standard voltage equipment support. With hardwired input connections and included mounting accessories, the 9PXTFMR11 offers flexibility and convenience in both rack and tower setups. It is ENERGY STAR certified and comes with a 3-year limited warranty.
| Specification | Details |
|---|---|
| Model Number | 9PXTFMR11 |
| Product Type | Stepdown Transformer |
| Used With | Eaton 9PX 8–11 kVA UPS Models |
| Input Connection | Hardwired |
| Output Voltage | 120V |
| Power Rating | 10kVA |
| Form Factor | Rack/Tower |
| Rack Size | 3U |
| Rack Mount Kit | Included (4-post rail kit + joining brackets) |
| Package Contents | Transformer, EBM cable, quick start guide, accessories |
| Dimensions (L x W x H) | 38.46 x 12.72 x 23.43 in |
| Weight | 187.39 lb |
| Relative Humidity | 0–95% non-condensing |
| Temperature Range | 0°C to 40°C (32°F to 104°F) |
| Certifications | cULus Listed, NOM, CE Marked, ENERGY STAR |
| Warranty | 3-Year Limited Warranty |
| UPC | 743172039323 |
