Eaton 9PX3000RTN 3000VA/2700W UPS, 2U, 120V, L5-30P Input, Network Card
by Eaton
The Eaton 9PX3000RTN UPS delivers high-efficiency, double-conversion backup power in a compact 2U rack/tower form factor. With a power capacity of 3000 VA and 2700 W, this UPS is ideal for protecting critical IT infrastructure in network closets, server rooms, and edge environments. Equipped with a pre-installed Gigabit Network Card (Network-M3), the 9PX3000RTN supports remote monitoring and power management via SNMP or Eaton’s Intelligent Power Software Suite. Featuring (6) 5-20R and (1) L5-30R output receptacles, hot-swappable batteries, extended battery module support, and Energy Star certification, this UPS ensures uninterrupted performance, optimized battery life, and streamlined power distribution.
| Specification | Details |
|---|---|
| Product Name | Eaton 9PX UPS |
| Model Number | 9PX3000RTN |
| Form Factor | Rack/Tower (2U) |
| Topology | Online/Double-conversion |
| Power Capacity | 3000 VA / 2700 W |
| Input Voltage | 120V (default); supports 100–125V |
| Input Plug Type | NEMA L5-30P |
| Input Cord Length | 8 ft |

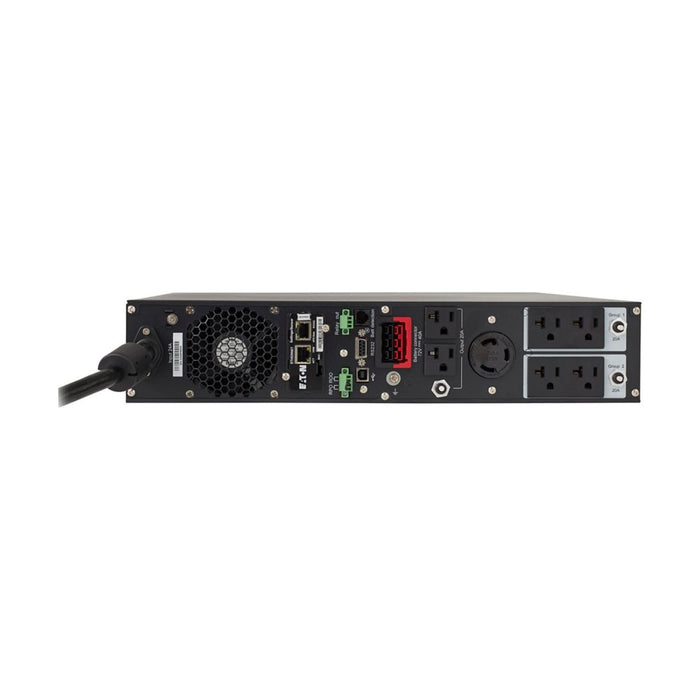

| Output Receptacles | (6) 5-20R, (1) L5-30R |
| Output Voltage | 120V (default); programmable range |
| Output Waveform | True Sine Wave |
| Output Frequency | 50/60 Hz (Auto-sensing) |
| Output Power Factor | 0.9 |
| Efficiency (Max Load) | 91% |
| Runtime (Full Load) | 5 minutes |
| Bypass | Internal bypass |
| Battery Type | Sealed lead-acid, hot-swappable |
| Extended Battery Support | Yes (up to 4 EBMs, 9PXEBM72RT) |
| Network Card | Included (Gigabit Network-M3) |
| Interface Ports | USB, RS232, Mini-Slot, Remote ON/OFF |

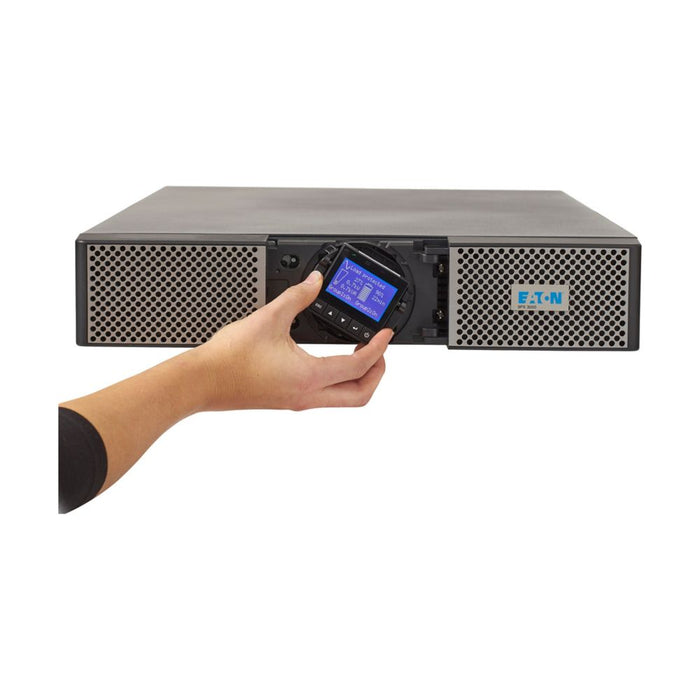

| User Interface | LCD Graphical Display + 5-button Menu |
| Software | Intelligent Power Software Suite |
| Mounting Kit | 4-post rail kit included |
| Color | Black/Silver |
| Certifications | ENERGY STAR, cULus, NOM, OSHPD Seismic |
| Compliances | FCC Class B, CE, VCCI, CISPR22 |
| Dimensions (HxWxD) | 3.4 x 17.3 x 23.8 in |
| Weight | 63.1 lb |
| Noise Level | <47 dB at 1 meter |
| Temperature Range | 0°C to 40°C (32°F to 104°F) |
| Warranty | 3-Year Warranty (UPS, Electronics, Battery) |
