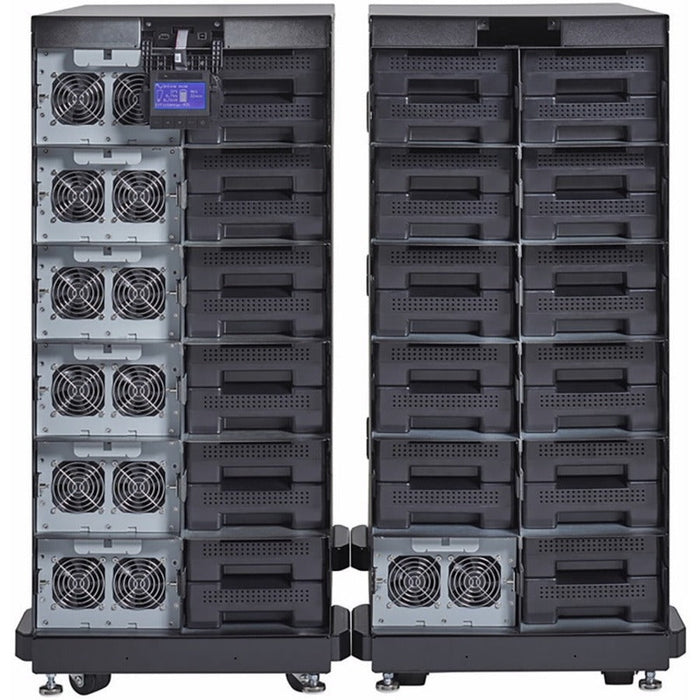

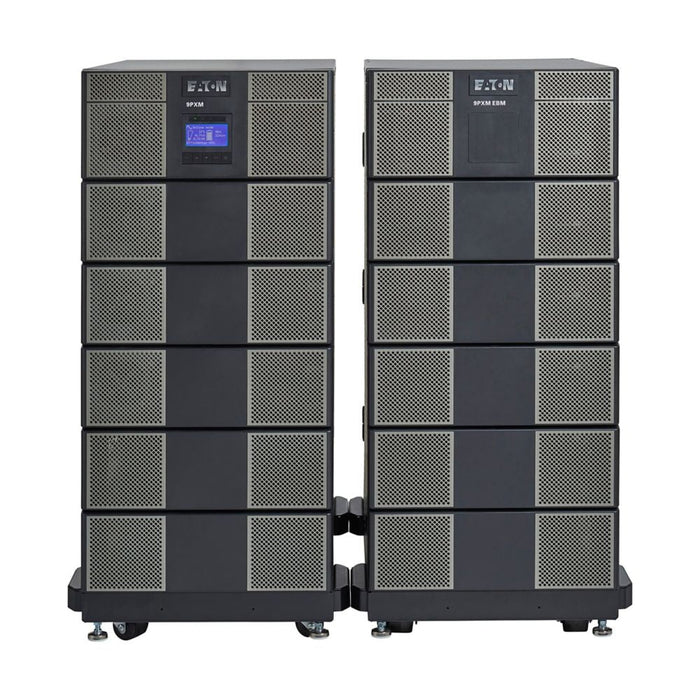

Eaton 9PXM12SEBM-C 12-Slot External Battery Enclosure – Connected
by Eaton
The Eaton 9PXM12SEBM-C is a 12-slot external battery enclosure designed to expand the runtime of Eaton 9PXM UPS systems. Featuring hot-swappable internal batteries and compatibility with extended battery modules (EBMs), this enclosure supports continuous uptime in mission-critical environments. With ABM technology for extended battery life and a hardwired input for secure installation, it ensures optimal performance and battery health monitoring. TAA and FCC compliant, the 9PXM12SEBM-C is ideal for enterprise and data center applications.
| Specification | Details |
|---|---|
| Product Name | Eaton 9PXM EBM |
| Catalog Number | 9PXM12SEBM-C |
| UPC | 743172105646 |
| Color | Black/Silver |
| Dimensions (L x W x H) | 34.5 in x 17.5 in x 36.5 in |
| Weight | 165 lb |
| Compliance | TAA Compliant, FCC Compliant |
| Certifications | IEC Rated, cULus Listed |
| Battery Replacement | Hot-swappable internal batteries, EBMs supported |
| Battery Management | ABM Technology (3-stage charging) |
| Extended Battery Capable | Yes |
| Input Connection | Hardwired |
| Nominal Input Voltage | 110V/220V, 120V/208V, 120V/240V, 127V/220V |
| Input Power Factor | >0.99 typical |
| Input Frequency Range | 60 Hz: 50–70 Hz, 50 Hz: 40–60 Hz |
| UPS Topology | Online / Double-conversion |
| Temperature Range | 0° to 40°C (32° to 104°F) |
| Relative Humidity | 5–95% non-condensing |
| Package Contents | 9PXM 12-slot EBM, User Manual, Cable Connectors |
