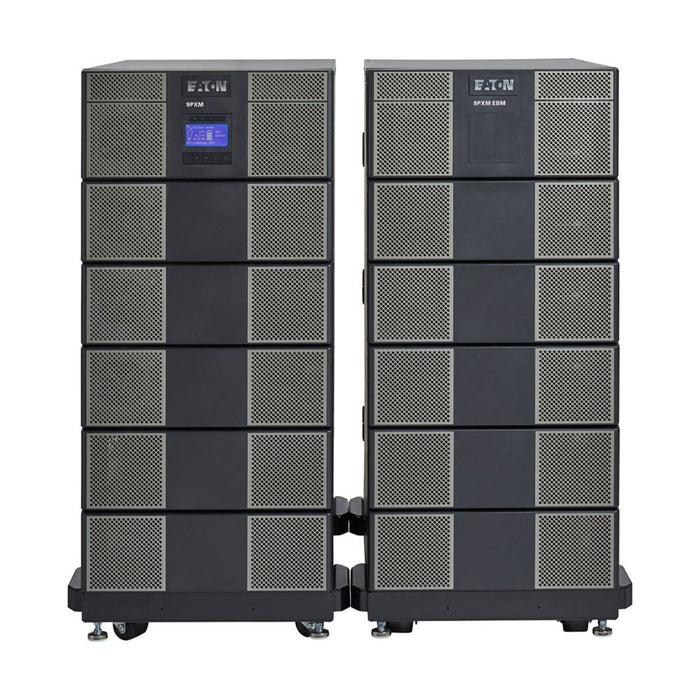

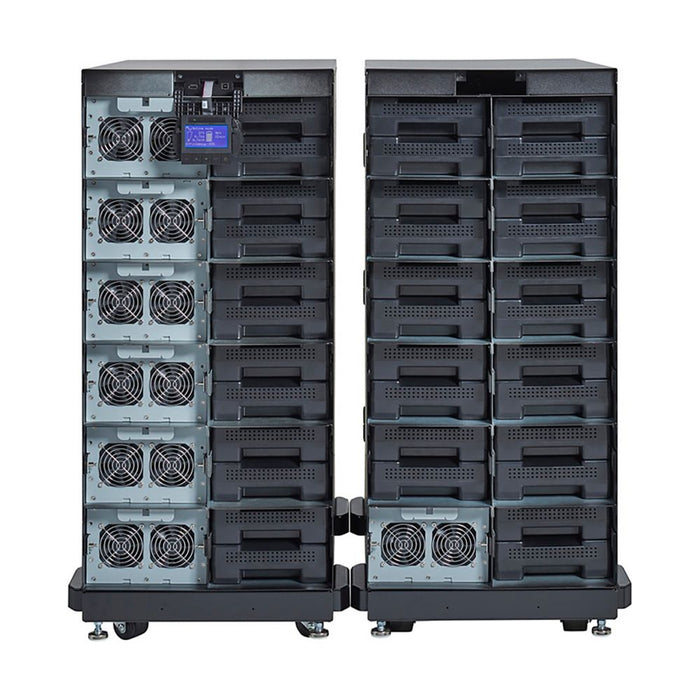

Eaton 9PXM12SEBM 12-Slot External Battery Enclosure for 9PXM UPS
by Eaton
Enhance your backup runtime with the Eaton 9PXM12SEBM, a 12-slot external battery enclosure designed for seamless integration with Eaton 9PXM UPS systems. Engineered with hot-swappable battery capabilities and advanced ABM technology, this rack/tower-mountable EBM extends battery life by up to 50%, ensuring reliable, scalable power protection for your critical systems. The unit features hardwired connections, double-conversion topology support, and broad voltage compatibility, making it an ideal solution for growing IT environments.
| Specification | Details |
|---|---|
| Product Name | Eaton 9PXM External Battery Module (EBM) |
| Catalog Number | 9PXM12SEBM |
| UPC | 743172091413 |
| Form Factor | Rack/Tower |
| Battery Slots | 12 |
| Battery Type | Hot-swappable, compatible with 9PXM EBMs |
| Battery Management | ABM technology with 3-stage charging |
| Input Voltage | 110V/220V, 120V/208V, 120V/240V, 127V/220V |
| Input Connection | Hardwired |
| Power Factor | >0.99 typical |
| Input Frequency | 60 Hz: 50–70 Hz, 50 Hz: 40–60 Hz |
| Topology | Online / Double-conversion |
| Color | Black/Silver |
| Dimensions (L x W x H) | 34.5 in x 17.5 in x 36.5 in |
| Weight | 165 lb |
| Operating Temp | 0° to 40°C (32° to 104°F) |
| Relative Humidity | 5–95% non-condensing |
| Compliance | TAA, FCC |
| Certifications | IEC Rated, cULus Listed |
| Warranty Options | 5-Year Depot or 5-Year On-Site Service Plans |
| Included Accessories | Cable connectors, user manual |
