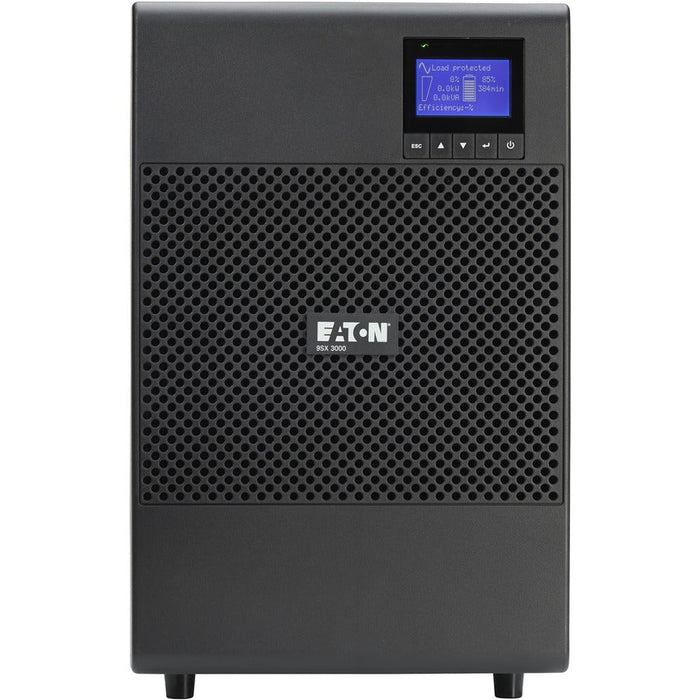

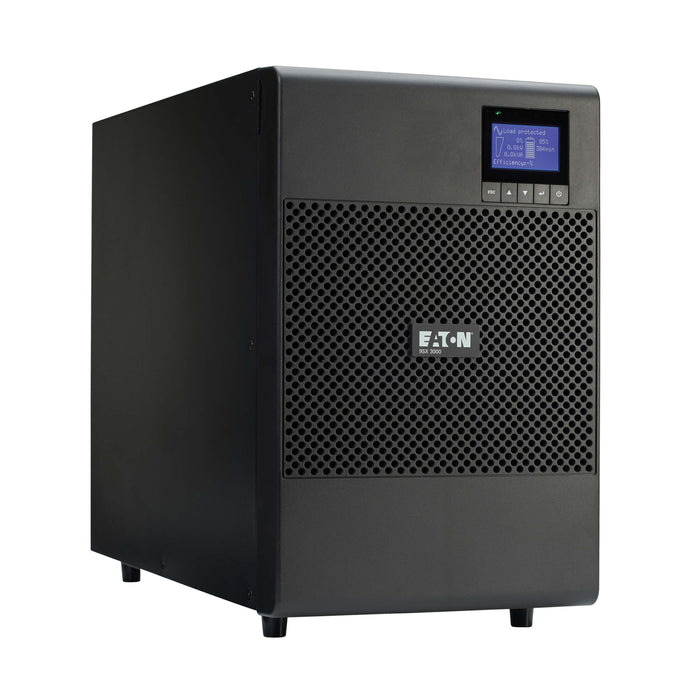

Eaton 9SX 3000VA 2700W 120V Online Double-Conversion UPS – Hardwired In/Out, Extended Runtime, Tower
by Eaton
The Eaton 9SX3000HW is a high-performance 3000VA/2700W online double-conversion UPS designed for critical applications in medical, light industrial, automation, and IT environments. With hardwired input and output, it ensures uninterrupted, clean power with zero transfer time and pure sine wave output. Advanced ABM battery management extends battery life by up to 50%, while optional external battery modules provide extended runtime. Equipped with an intuitive LCD panel, remote management options (with the optional Network-M3 card), and robust cybersecurity compliance, the 9SX3000HW is ideal for protecting essential systems where power reliability and uptime are critical.
| Specification | Details |
|---|---|
| Model Number | 9SX3000HW |
| Form Factor | Tower |
| Input Voltage | 120V AC (Hardwired) |
| Output Voltage(s) | 100V, 110V, 120V, 125V |
| Output Capacity | 3000 VA / 2700 W |
| Waveform (Battery Mode) | Pure Sine Wave |
| Topology | Online Double-Conversion |
| Runtime @ Full Load (2700W) | 5 minutes |
| Runtime @ Half Load (1350W) | 17 minutes |
| Expandable Runtime | Yes – Up to 4 EBMs (9SXEBM96) |

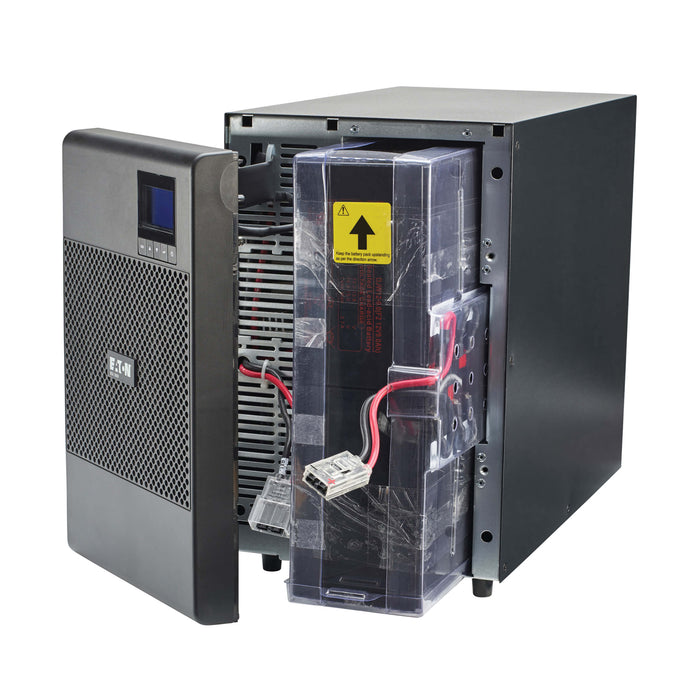

| Battery Type | VRLA, Hot-swappable, User-replaceable |
| Battery Management | ABM Technology (3-stage charging) |
| User Interface | LCD Graphical Display, 4 LED Indicators |
| Remote Management | Optional Network-M3 Card (Sold Separately) |

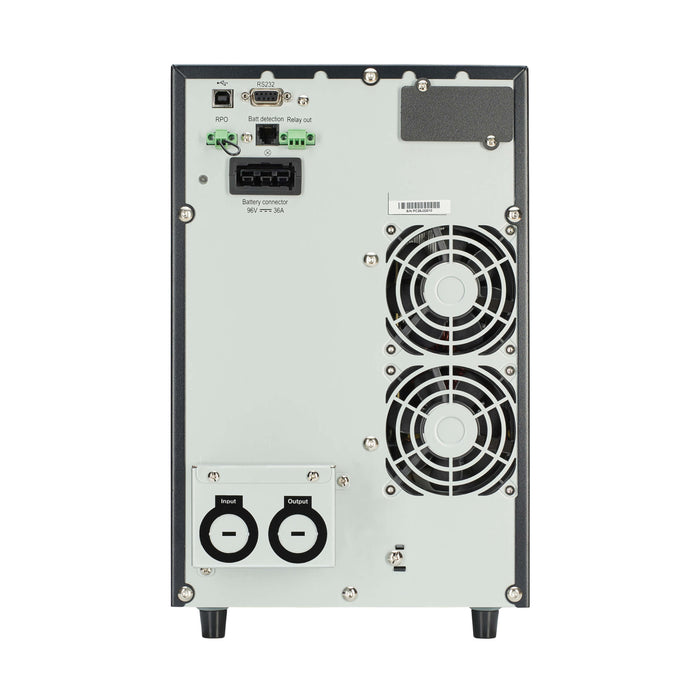

| Communications Ports | USB, DB9 Serial, SNMP/Web Slot |
| Receptacles | Hardwired Output |
| Dimensions (H x W x D) | 13.6 x 8.4 x 16.2 in (345 x 213 x 411 mm) |
| Weight | 77.2 lbs (35.02 kg) |
| Certifications | UL, cUL, CE, FCC, RoHS, REACH |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Humidity | 0–96% (non-condensing) |
| Warranty | 3-Year Limited Warranty |
