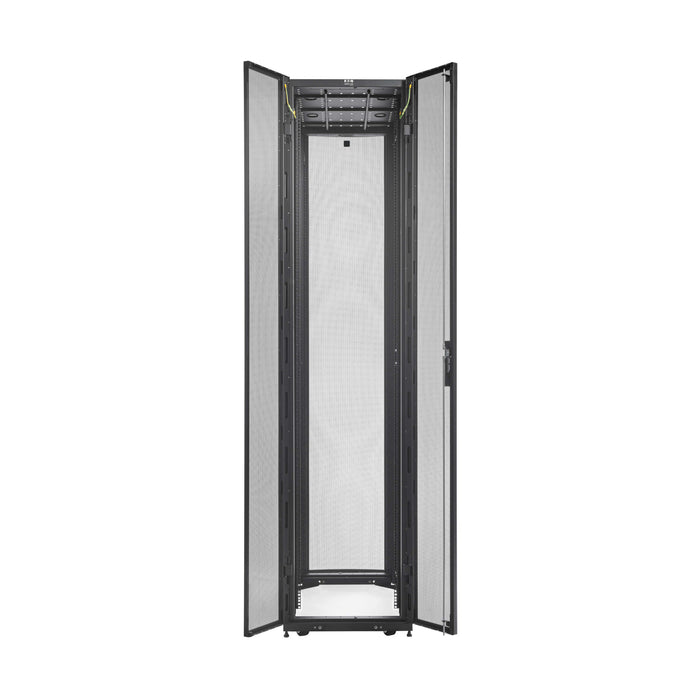

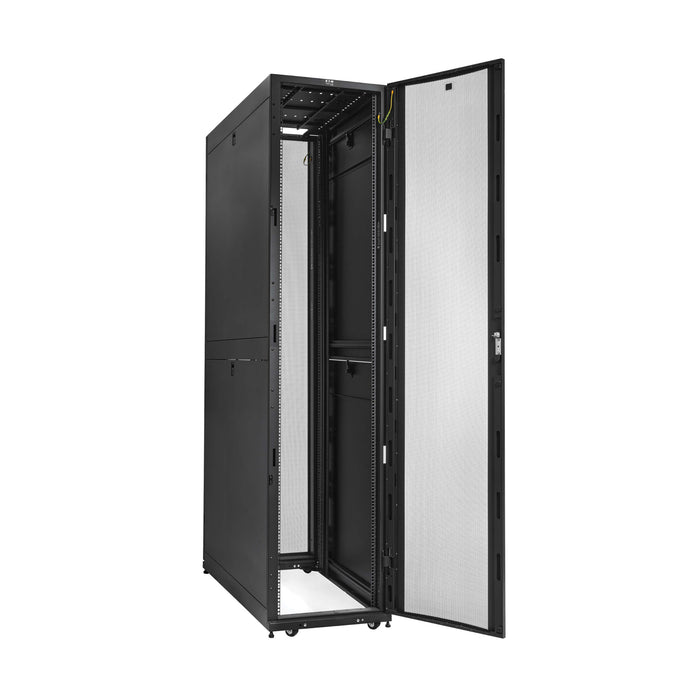

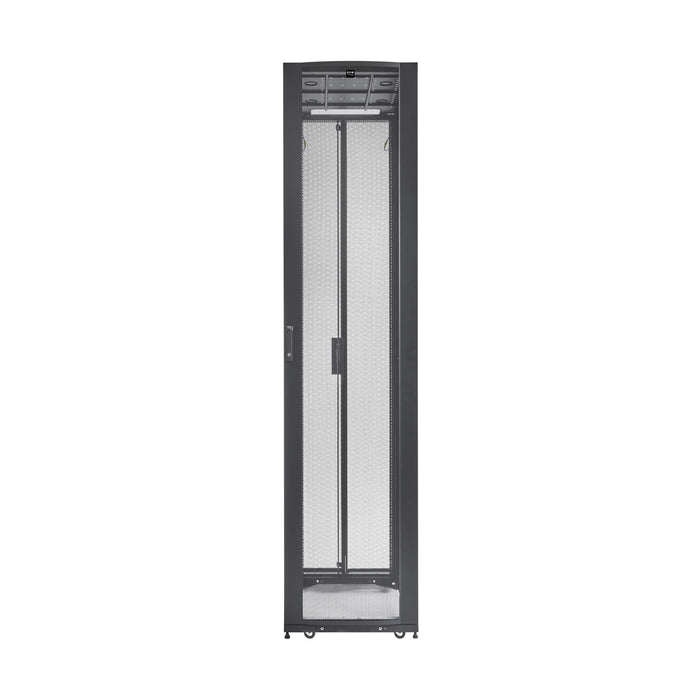

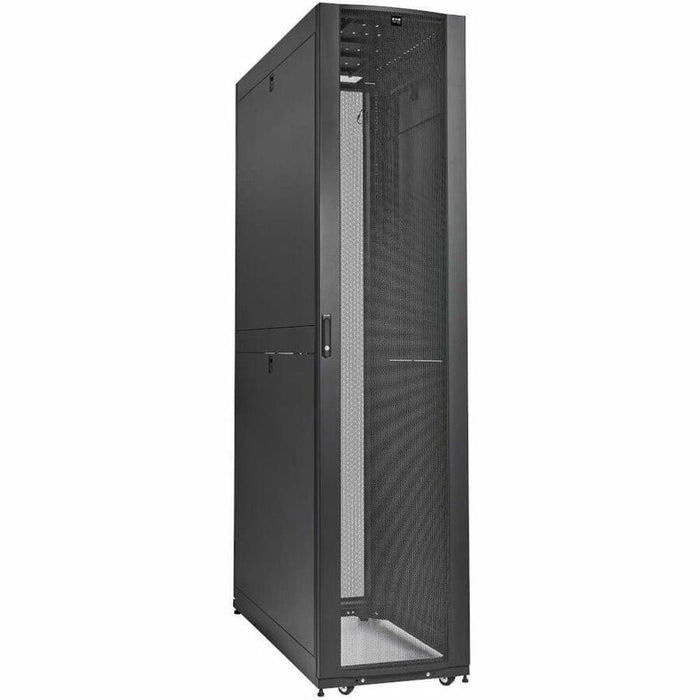

Eaton Tripp Lite SmartRack SR52UBDP 52U Deep Rack Enclosure Cabinet with Doors and Side Panels
by Eaton
The Eaton Tripp Lite SmartRack SR52UBDP is an extra-tall 52U deep rack enclosure cabinet engineered to house, organize, and protect deeper rack-mounted IT and networking equipment. Ideal for high-density server rooms and network closets, this fully assembled enclosure supports devices up to 42 inches (1070 mm) deep and ensures optimal use of vertical space. It features locking doors and side panels, tool-less vertical mounting for PDUs or cable managers, pre-installed casters for mobility, and PCI DSS-compliant security. With its 3500 lb stationary and 2250 lb rolling load capacity, this cabinet is built to support heavy-duty enterprise hardware.
| Specification | Details |
|---|---|
| Model Number | SR52UBDP |
| Rack Height | 52U |
| Rack Depth | Deep (supports equipment up to 42 in / 1070 mm) |
| Device Compatibility | Servers, Routers, Switches, UPS, Patch Panels |
| Load Capacity (Stationary) | 3500 lbs (1588 kg) |
| Load Capacity (Rolling) | 2250 lbs (1021 kg) |
| Dimensions (H x W x D) | 95.92 x 23.62 x 48.11 in (243.64 x 60 x 122.2 cm) |
| Shipping Dimensions (H x W x D) | 101.19 x 33.46 x 49.75 in |
| Unit Weight | 378.8 lbs (171.82 kg) |
| Shipping Weight | 448.75 lbs (203.55 kg) |
| Construction | Steel with black powder-coated finish |
| Mounting Rails | 4 vertical, adjustable, toolless PDU-ready |
| Cable Management | Built-in, with top/bottom access ports |
| Ventilation | Front/rear vented doors (over 65% airflow) |
| Security | Locking front, rear, and side panels |
| Casters and Levelers | Pre-installed (removable) |
| Compliance | PCI DSS, UL 60950-1, CE, RoHS, UKCA |
| Warranty | 5-Year Limited Warranty |
| UPC | 037332260802 |
