N2XH 2×1.5 mm²

by ICG Supply

N2XH 2×1.5 mm² halogen-free power cable

Copper power cable for fixed installations, with XLPE insulation and a low-smoke, halogen-free (LSZH) sheath. Typical rated voltage for N2XH is 0.6/1 kV. Confirm the conductor class and technical specification with the supplier before ordering.

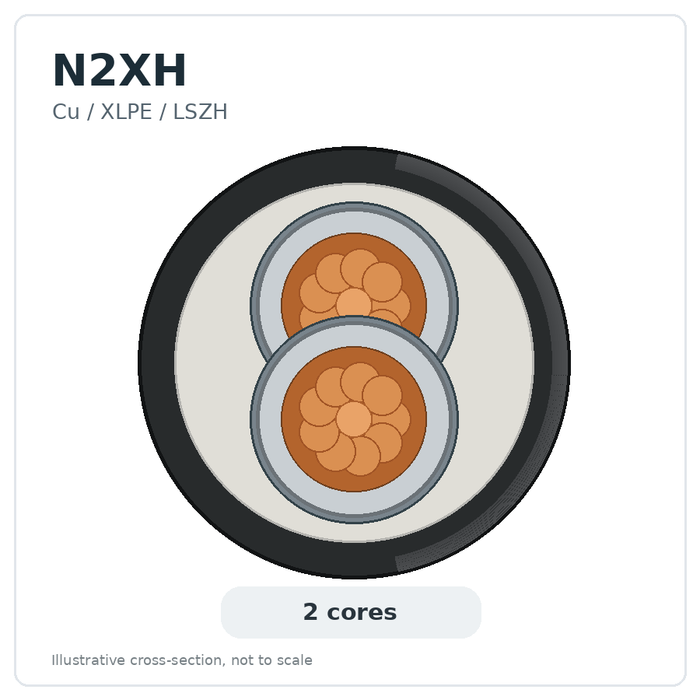

This product image is schematic. Please contact ICG Supply for current pricing and availability.

Ask us on WhatsApp for availability, current price and lead time.

Request a Quote Ask Price on WhatsApp

N2XH technical specifications — reference data

Reference values from the YUZHCABLE N2XH catalogue. Actual cable construction and manufacturer must be confirmed for supplied goods. The correspondence of products labelled N2XH-1 also requires verification.

Cores × cross-section, mm²Insulation, mmOuter Ø, mm (approx.)Mass, kg/km (approx.)Resistance at 20°C, Ω/kmCurrent in air, ACurrent buried, A*
N2XH 2×1.5 0.71212012.12531

Rating conditions: air +25°C; soil +15°C, burial depth 0.7 m, thermal resistivity 1.2 K·m/W. Single-core figures are for d.c.; a.c. rating depends on laying configuration. Underground installation requires mechanical protection in a duct or conduit. *Verify actual laying conditions before engineering use.

YUZHCABLE · N2XH · Cables, Wires, Cords and Conductors, pp. 60–63 · HD 604 / HD 627 / IEC 60502-1 · 0.6/1 kV.
